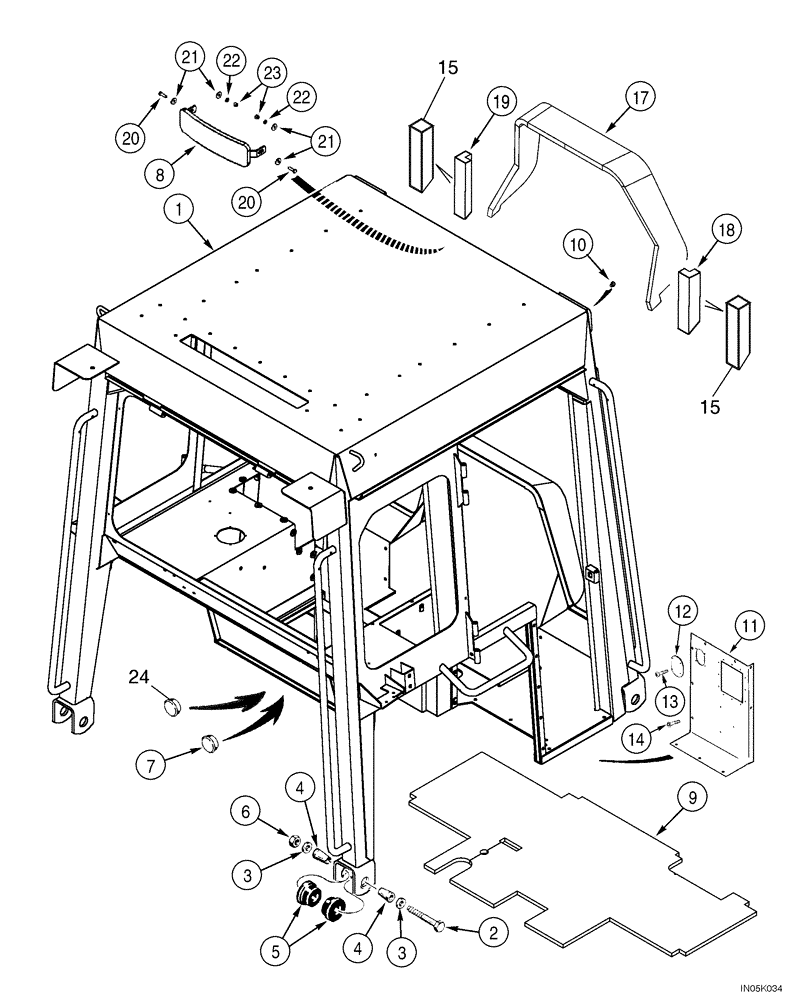

Запчасти Case 1150H_IND (09-23) - CAB - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

374390A1

CAB

ROPS, Complete, Includes Heat and Air Conditioning; Order From Machinery Price List

1шт.

2

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4 x 6-1/2

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

8шт.

5

F44212

MOUNTING PARTS

8шт.

6

232-14412

NUT,3/4"-10, GB

3/4

4шт.

7

353-407

PLUG,Dome, .687" hole, Nylon

2шт.

8

367831A1

MIRROR

1шт.

9

374415A1

MAT

1шт.

10

353-62

PLUG,Cap, .302" OD

5/16, Hand Rail

16шт.

11

374414A1

COVER

Front Hydraulic Tank

1шт.

12

R47916

LARGE PLATE

PLATE, LARGE If Used

1шт.

13

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

4шт.

14

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

44шт.

15

399048A1

SEAL

Foam; If Used

2шт.

16

399689A1

SEAL

Foam Strip, Not Illustrated

2шт.

17

378300A1

FOAM

1шт.

18

373294A1

RUBBER SEAL

225 mm (8-7/8 in), Right Hand; If Used

1шт.

19

381652A1

SEAL

Left Hand; If Used

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

2шт.

24

353-413

PLUG,Dome, 1.187" hole, Nylon

DOME 1.187 Hole Blk Nylon

2шт.
