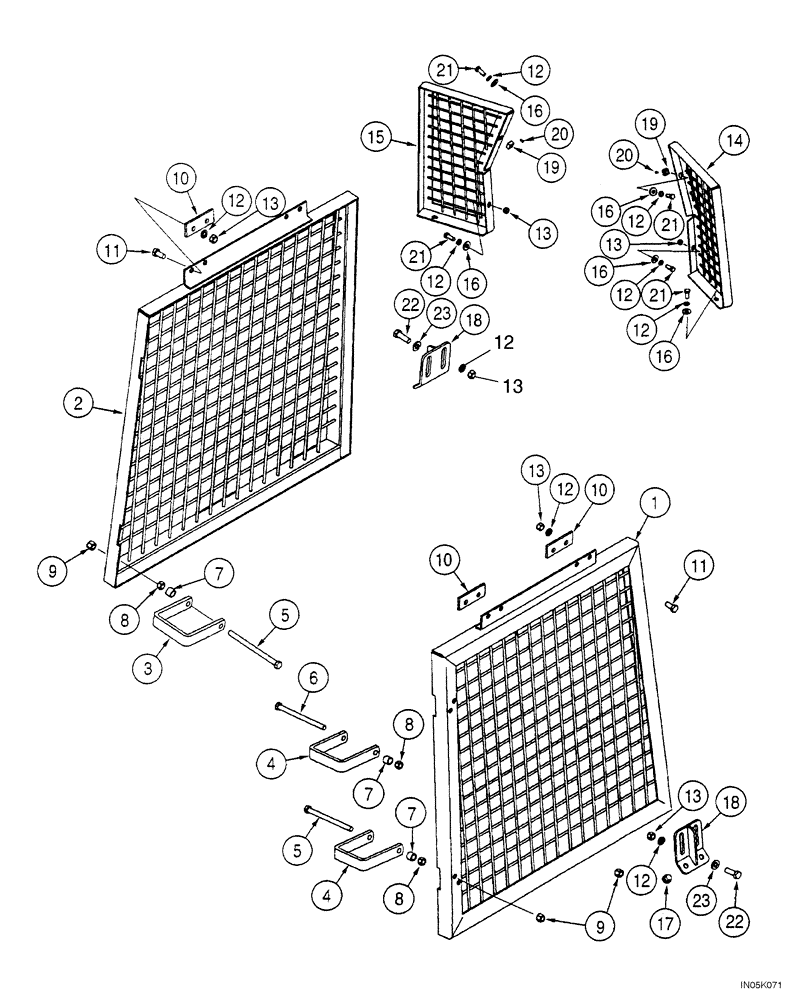

Запчасти Case 1150H_IND (09-22) - CANOPY, ROPS - SCREENS (09) - CHASSIS/ATTACHMENTS

1

379606A1

PANEL, SIDE

Right Hand Side

1шт.

2

379605A1

PANEL, SIDE

Left Hand Side

1шт.

3

176869A1

CLAMP

Lower Rear

2шт.

4

182168A1

CLAMP

Upper Rear

2шт.

5

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

6

113-423

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2 x 7

2шт.

7

393956A1

BUSHING

L30; If Used

4шт.

7

T53868

BUSHING

L15.8; If Used

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

231-4248

NUT,1/2"-13, GB

(Replaces 231-1448)

4шт.

10

177383A1

CLAMP

Screen, Upper

4шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

13

425-108

NUT,1/2" - 13, Gr 5

14шт.

14

378204A1

PANEL, SIDE

Right Hand Front

1шт.

15

378205A1

PANEL, SIDE

Left Hand Front

1шт.

16

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

6шт.

17

R38089

CUSHION ASSY.

Rubber, Side Screen, Lower

4шт.

18

362510A1

BRACKET

Support, Side Screen

2шт.

19

129-857

SQUARE NUT,Sq, 1/2"-13

Replaces 224-2808

2шт.

20

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.
