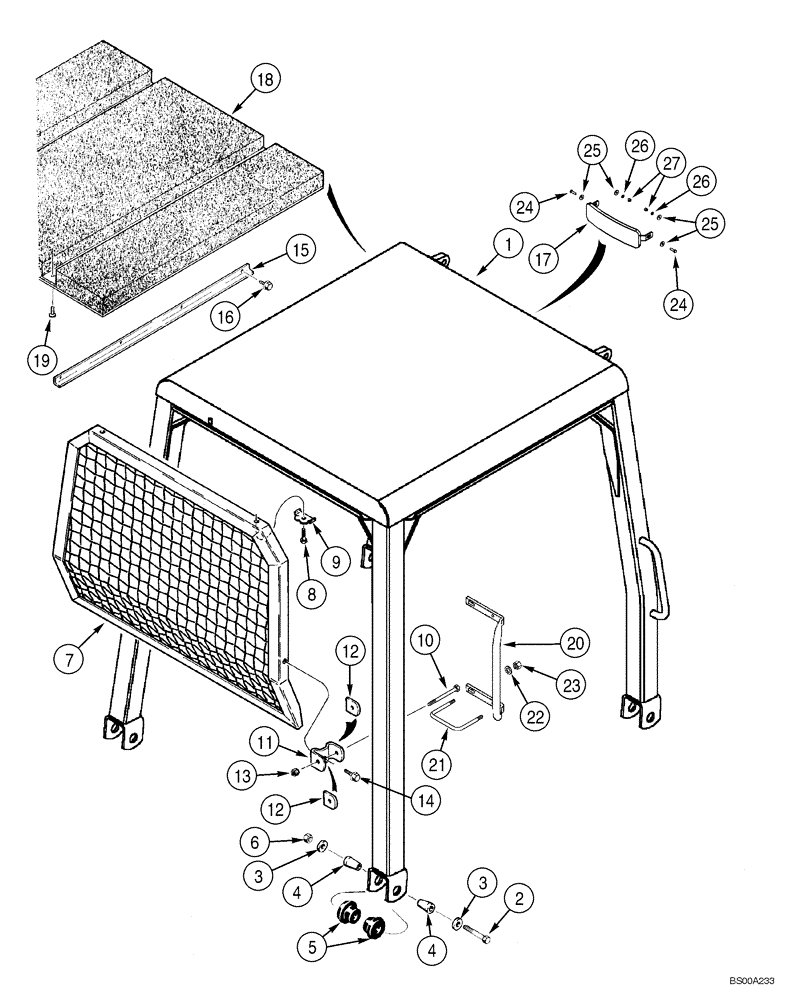

Запчасти Case 1150H_IND (09-20) - CANOPY, ROPS - FRAME AND REAR SCREEN (09) - CHASSIS/ATTACHMENTS

1

375524A1

ROPS

ASSEMBLY

1шт.

2

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

3/4 x 6-1/2

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

8шт.

5

F44214

MOUNTING PARTS

Rubber

8шт.

6

232-14412

NUT,3/4"-10, GB

3/4

4шт.

7

177172A1

SCREEN

Rear

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

9

182651A1

LOCK WASHER

2шт.

10

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

1/2 x 5-3/4

2шт.

11

177168A1

CLAMP

2шт.

12

R40074

CUSHION ASSY.

4шт.

13

231-1448

NUT,1/2"-13, GB

2шт.

14

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

15

185553A1

ANGLE

Headliner

2шт.

16

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

17

367831A1

MIRROR

1шт.

18

180716A1

PAD

Vinyl

1шт.

19

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

1/4 x 7/8

1шт.

20

184858A1

HANDLED SHAFT

If Equipped

2шт.

21

108571A1

U-BOLT

3/8

4шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

23

425-106

NUT,3/8"-16, Cl 5

8шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

231-1446

NUT,3/8" - 16, Gr 5

2шт.
