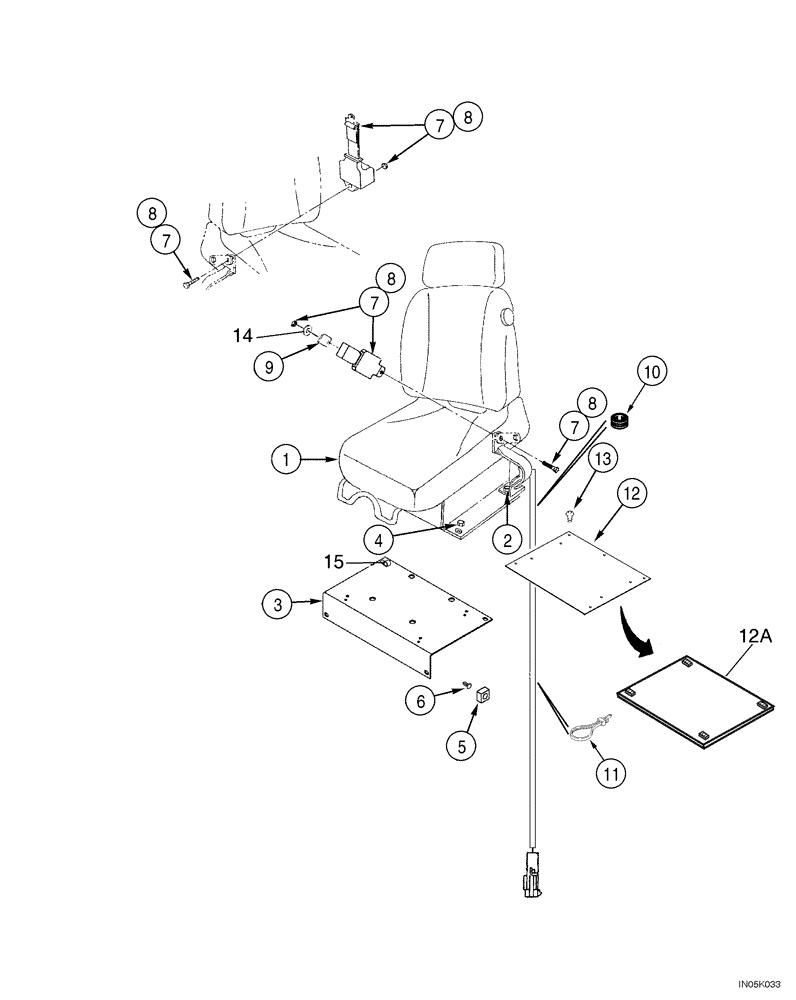

Запчасти Case 1150H_IND (09-19) - SEAT, MOUNTING - SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

374536A1

SEAT

Air Suspension, See Figure 09-19A

1шт.

2

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

3

R58423

SUPPORT

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

5

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

7

87408888

SAFETY BELT ,76.20 mm W

Mounting Hardware Supplied with Seat Assy, Replaces R58418

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

Use with 9, Mounting Hardware Supplied with Seat Assy, Replaces D150377

1шт.

9

D150393

BRACKET

Used With 8

1шт.

10

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Cab Models

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch

5шт.

12

382679A1

LARGE PLATE

PLATE, LARGE Seat Mount, Cab Models

1шт.

12a

394997A1

LARGE PLATE

PLATE, LARGE Seat Mount; If Used

1шт.

13

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

6шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

15

49836

CLAMP

1шт.
