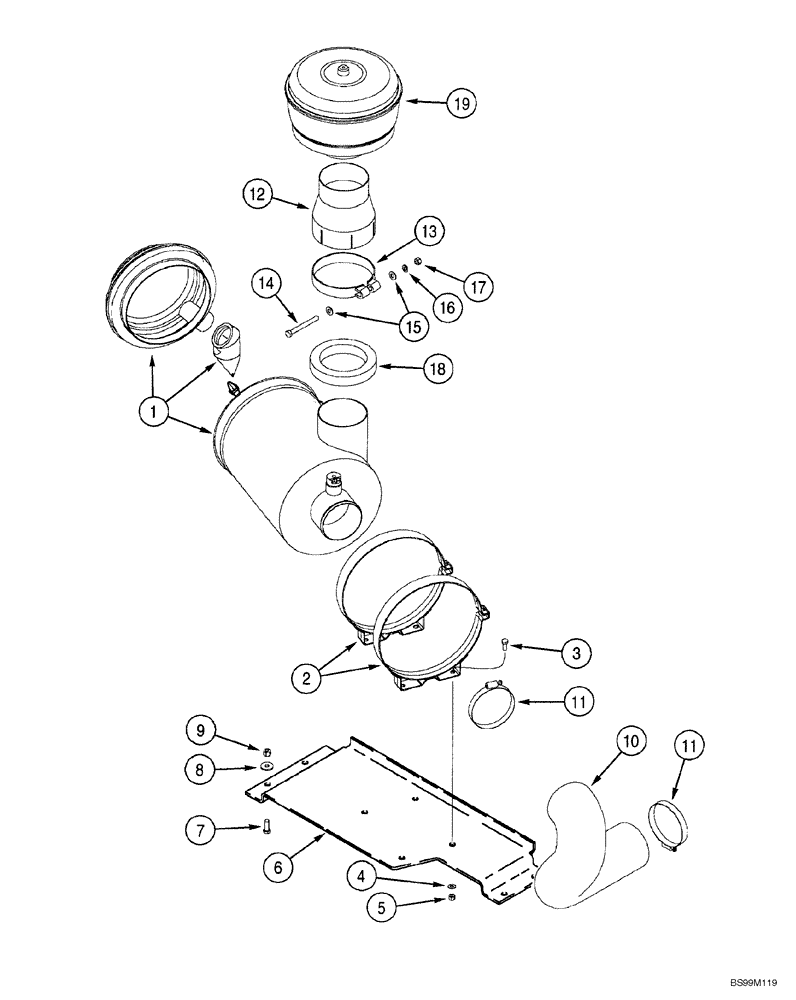

Запчасти Case 1150H_IND (02-06) - AIR CLEANER - MOUNTING (02) - ENGINE

1

347425A1

AIR CLEANER

See Figure 02-07

1шт.

2

A16574

BAND

Includes Hardware

2шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

5

231-1445

NUT,5/16"-18, GB

4шт.

6

369510A1

BRACKET

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

347797A1

HOSE

1шт.

11

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

2шт.

12

R48590

ORIFICE RING

1шт.

13

R48589

CLAMP

1шт.

14

113-2273

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

15

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

13/32 x 13/16 x 1/16

2шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

129-770

NUT,3/8"-16, G5

1шт.

18

R43072

NOISE PROTECTION

1шт.

19

258541A1

PRECLEANER

See Figure 02-07

1шт.
