Запчасти Case 1150H_IND (09-16) - PLATES, FLOOR - PLATES, STEP (09) - CHASSIS/ATTACHMENTS

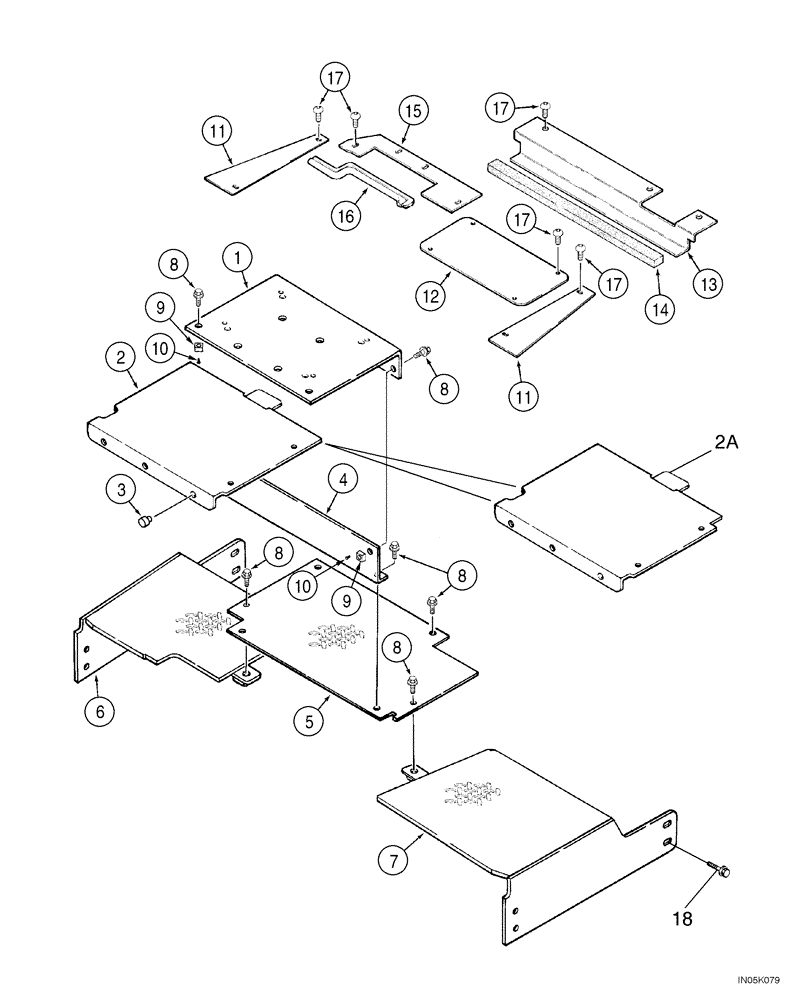

Схема запчастей Case 1150H_IND - (09-16) - PLATES, FLOOR - PLATES, STEP (09) - CHASSIS/ATTACHMENTS
17
14
3
17
1
13
10
8
18
7
16
9
5
17
6
10
12
8
8
9
4
17
2
11
8
8
2a
15
11

Артикул

Название

Примечание

Количество

1

R58423

SUPPORT

Includes Decal

1шт.

2

141129A1

COVER

Battery, No Longer Available, Order 141129A2, Ref. 2A

1шт.

2a

141129A2

PROTECTIVE COVER

1шт.

3

F22426

STOP

3шт.

4

R57970

PLATE

Heel

1шт.

5

142635A1

LARGE PLATE

PLATE, LARGE Floor, Center

1шт.

6

142661A1

PLATE

Step, Left Hand

1шт.

7

142682A1

PLATE

Step, Right Hand

1шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

10шт.

9

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

10

336371A1

PIN,4.88mm OD x 14.23mm L

Cab Models

4шт.

11

178792A1

PLATE

Filler Strip, Step

2шт.

12

178790A1

LARGE PLATE

PLATE, LARGE Cover

1шт.

13

178794A1

SUPPORT

Floor

1шт.

14

178815A1

SEAL

713 mm (28 in), Adhesive Back

1шт.

15

191785A1

PLATE ASSY.

Fuel Tank Seal, Includes 16

1шт.

16

1999824C1

SEAL

460 mm (18-1/8 in), Cut From 1999833C1

1шт.

17

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

5/16 x 3/4

12шт.

18

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2;8

4шт.

Выбрано товаров: 19
