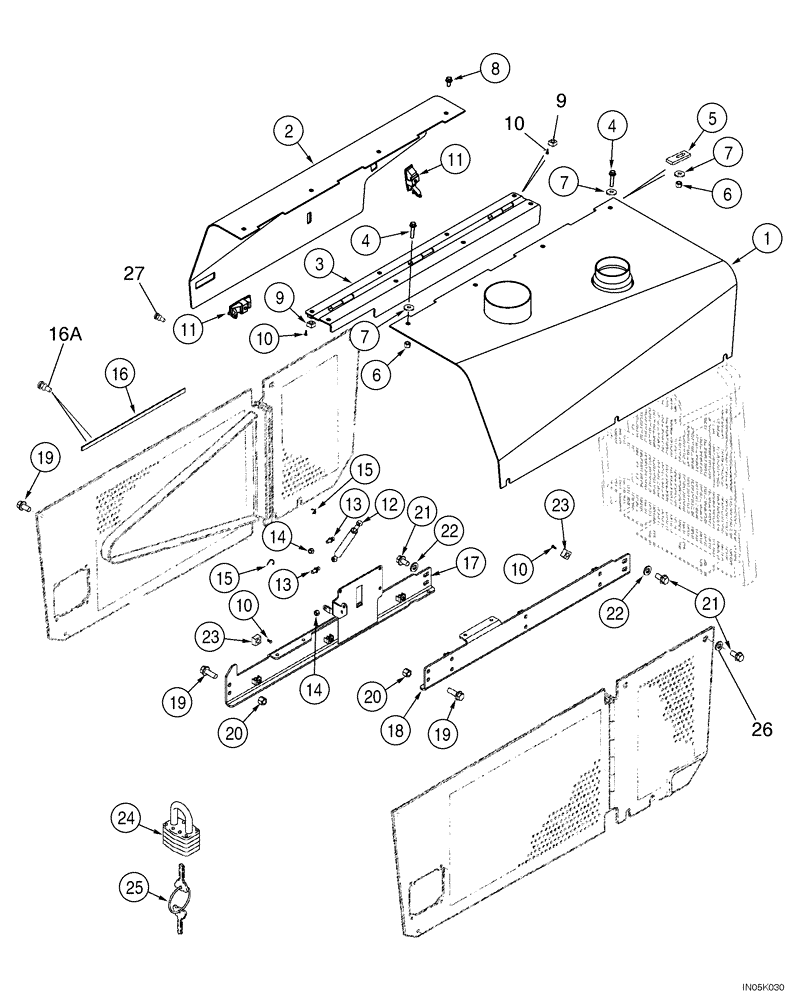

Запчасти Case 1150H_IND (09-13) - HOOD (09) - CHASSIS/ATTACHMENTS

1

373430A1

PLATE ASSY.

Right Hand

1шт.

2

373003A1

HOOD

Left Hand

1шт.

3

369500A1

SLIDE

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 X 0.75

2шт.

5

356567A1

PLATE

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

3шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

25шт.

8

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1/2 x 1-1/4; 8

6шт.

9

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

3/8

6шт.

10

336371A1

PIN,4.88mm OD x 14.23mm L

13шт.

11

356924A3

LATCH

Includes Hardware, Replaces 356924A2 and Also Replaces 356924A1 Used On Some Models

2шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.

12

189787A2

SHOCK ABSORBER

1шт.

13

109498A1

STUD

Ball; If Used

2шт.

13

F44882

BALL

Stud; If Used

2шт.

14

231-1445

NUT,5/16"-18, GB

2шт.

15

F44883

CLIP,DIN 71805 - S10

2шт.

16

R56995

PROTECTION STRIP

515 mm, Adhesive Back; If Used

1шт.

16a

395800A1

BUMPER

Rubber Rear; If Used

3шт.

17

369503A1

ANGLE

Left Hand

1шт.

18

369506A1

ANGLE

Right Hand

1шт.

19

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

20

231-1448

NUT,1/2"-13, GB

4шт.

21

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Use Loctite No. 242

11шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.

22

R54996

SPACER

4шт.

23

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

7шт.

24

D93753

PADLOCK

Incl. 26

1шт.

25

R29555

KEY

For Master Padlock Only

2шт.

25

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

26

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

27

A161780

BUMPER

Rubber Rear Hood

1шт.
