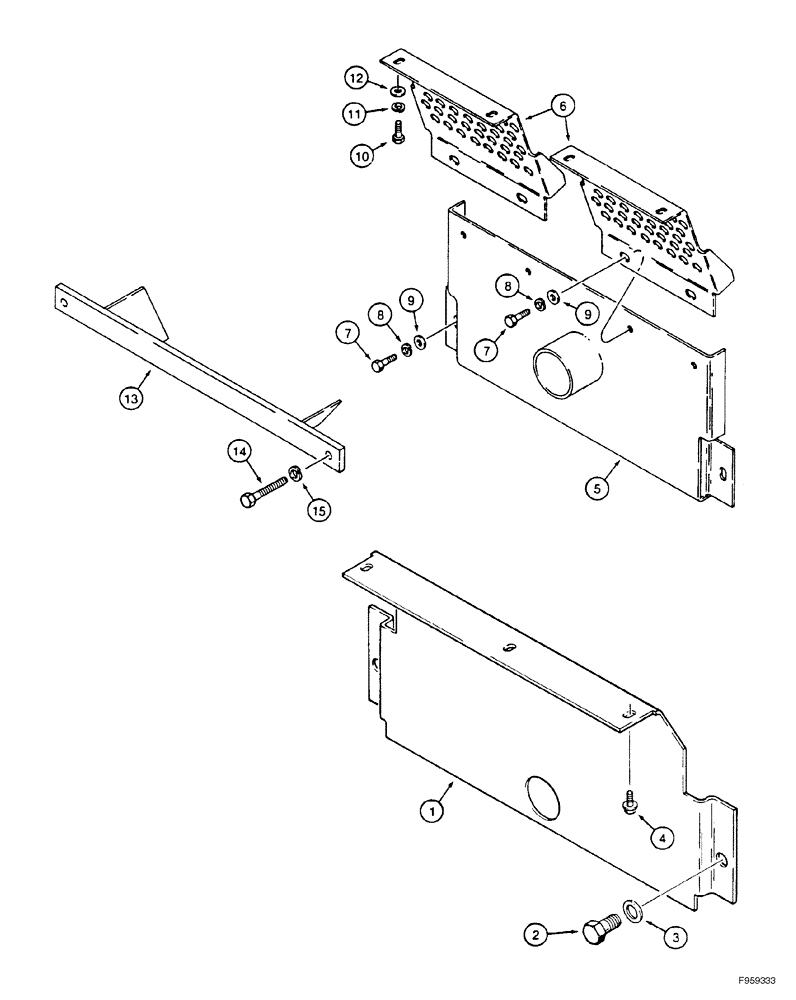

Запчасти Case 1150H_IND (09-11) - GUARD, TRANSMISSION - REAR (09) - CHASSIS/ATTACHMENTS

Drawbar Models with No Rear Equipment

1шт.

1

R46920

GUARD ASSY.

Rear

1шт.

2

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

1 x 1-1/2

2шт.

3

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

2шт.

4

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

Used on Models with a Ripper

1шт.

5

R51367

GUARD ASSY.

Rear

1шт.

6

R51366

GUARD ASSY.

Perforated, Rear

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

13

R51363

LARGE PLATE

PLATE, LARGE Lower, Rear

1шт.

14

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

15

492-11062

BEARING WASHER,5/8"

2шт.
