Запчасти Case 1150H_IND (09-10) - SHIELDS, UNDERCARRIAGE (09) - CHASSIS/ATTACHMENTS

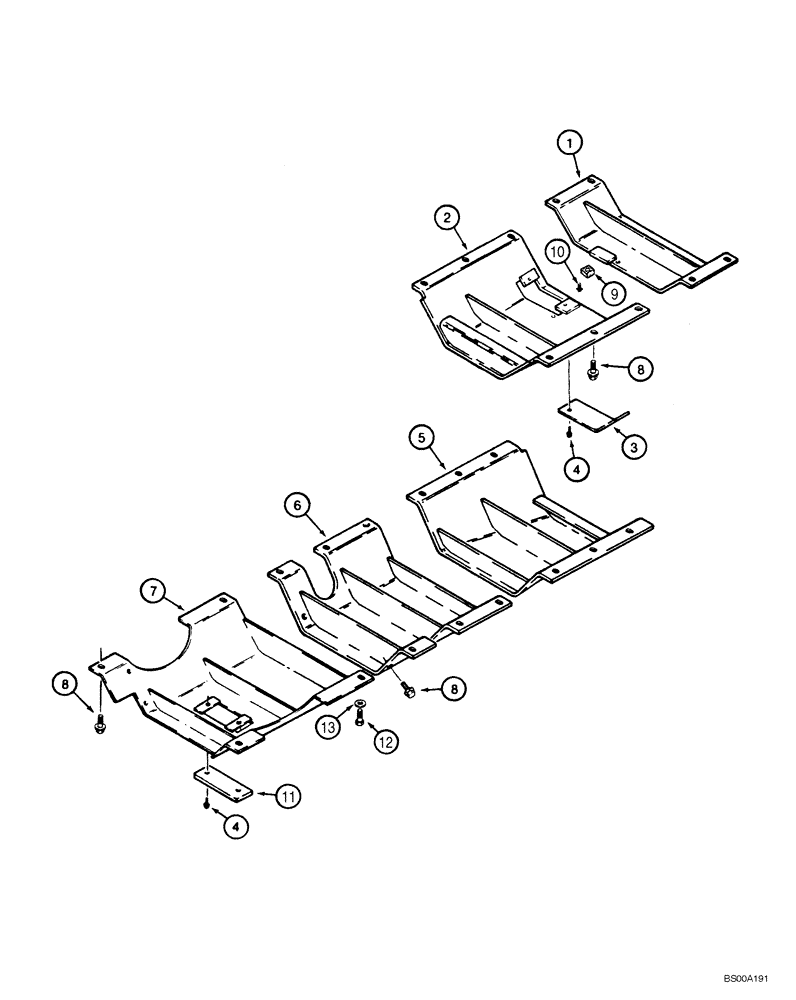

Схема запчастей Case 1150H_IND - (09-10) - SHIELDS, UNDERCARRIAGE (09) - CHASSIS/ATTACHMENTS
8
7
10
4
9
12
1
8
3
5
6
2
8
4
11
13

Артикул

Название

Примечание

Количество

369276A1

ASSEMBLY

Incl. : Ref. 1-13, For Complete Assembly, See Figure(s) 06--04 - 06-16, 07-03, 09-09, 09-10

1шт.

1

R48349

GUARD ASSY.

Front

1шт.

2

R54943

GUARD ASSY.

Engine Oil Pan

1шт.

3

R48345

COVER

Engine Oil Drain

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

5

R36545

GUARD ASSY.

Torque Converter

1шт.

6

R52167

GUARD ASSY.

Pivot Shaft

1шт.

7

R26356

GUARD ASSY.

Transmission, Rear

1шт.

8

360-1028

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 - 11 x 1 - 3/4;8, Replaces 360-1032 Bolt 5/8 x 2; 8

24шт.

9

129-860

SQUARE NUT,Sq, 5/8"-11

24шт.

10

336371A1

PIN,4.88mm OD x 14.23mm L

24шт.

11

R48231

COVER

Transmission Oil Drain

1шт.

12

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

2шт.

13

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

Выбрано товаров: 14
