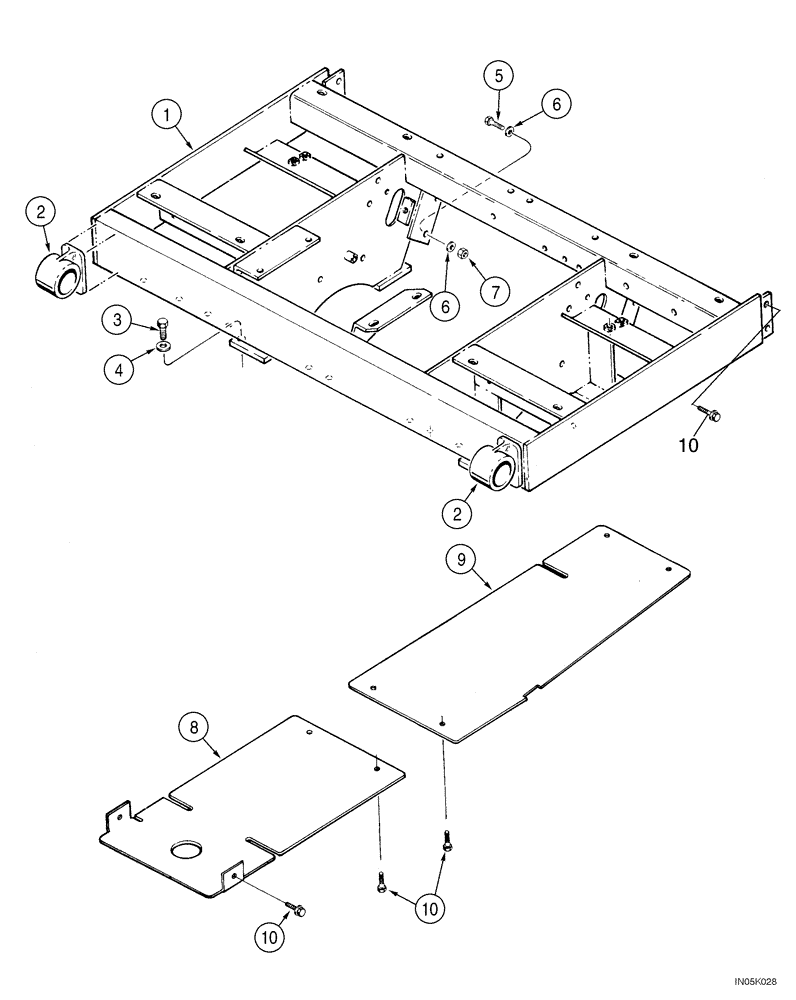

Запчасти Case 1150H_IND (09-09) - MOUNTING - FRAME, SEAT AND RESERVOIR (09) - CHASSIS/ATTACHMENTS

369276A1

ASSEMBLY

Incl. : Ref. 1-7 and Quantity 4 of Ref.10, For Complete Assembly, See Figure(s) 06-04 - 06-16, 07-03, 09-09, 09-10

1шт.

1

143915A1

FRAME

Seat and Reservoir

1шт.

2

R39921

BRACKET

Welded On; If Used

2шт.

3

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

12шт.

7

425-1010

NUT,5/8"-11, G5

6шт.

8

144027A1

COVER

Hydraulic Lines, Left Hand and Right Hand, Rear

2шт.

9

143884A1

COVER

Hydraulic Lines, Left Hand and Right Hand, Front

2шт.

10

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1.50, Replaces 160-107 Bolt FLG HD 1/2 X 1.25 GR8 PTF For Ref. 8,9

20шт.
