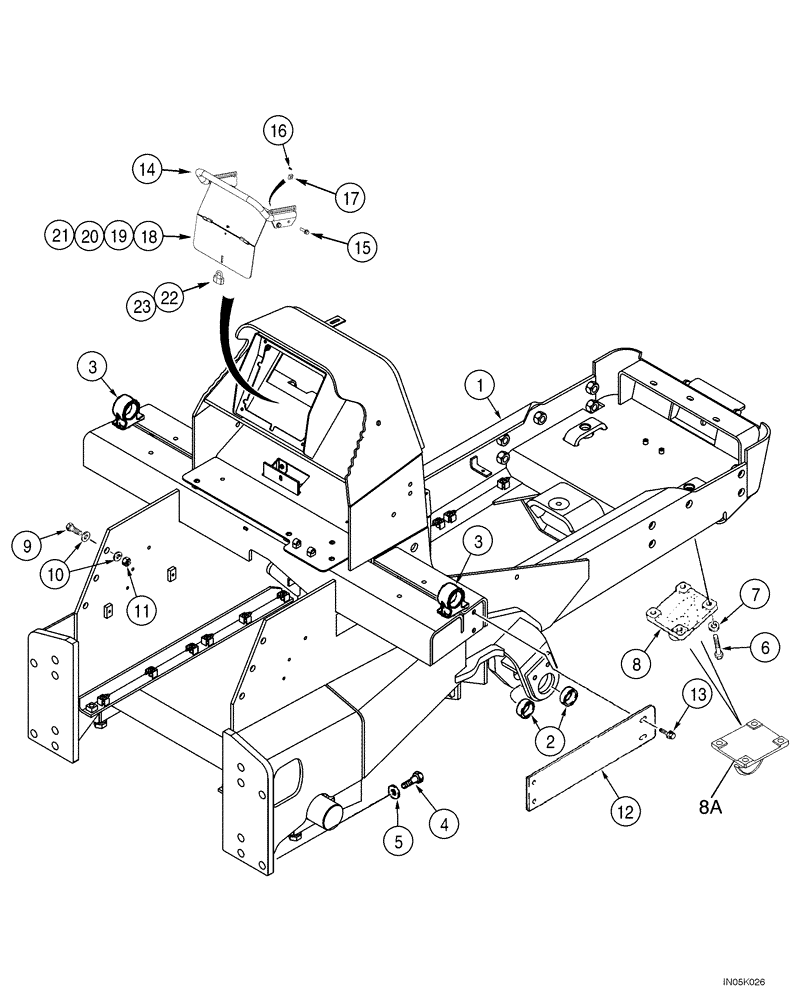

Запчасти Case 1150H_IND (09-07) - FRAME, MAIN (09) - CHASSIS/ATTACHMENTS

1

367503A1

FRAME ASSY

Chassis, 1575 mm (62 inch) Gauge Long Track (LT) Models, Incl. 2,3 and R26860 See Figure 09-08

1шт.

1a

367504A1

FRAME ASSY

Chassis, 1880 mm (74 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models, Not Illustrated, Incl. 2, 3 and R31363, Shaft See Figure 09-08

1шт.

2

D54068

BUSHING

4шт.

3

R39921

BRACKET

ROPS Mounting

2шт.

4

107-91640

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

12шт.

5

D30196

WASHER

12шт.

6

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.

8

71671

PLATE ASSY.

No Longer Available, Order 450473A1, Ref 8A

1шт.

8a

450473A1

HOOK

See Figure 09-05

1шт.

9

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

10

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

12шт.

11

425-1010

NUT,5/8"-11, G5

6шт.

12

141740A1

PLATE

Cab Models

2шт.

13

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8; Used With Ref. 12

8шт.

14

371771A1

HANDLED SHAFT

1шт.

15

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

16

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

17

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

3/8

4шт.

18

372198A1

DOOR ASSY.

1шт.

19

385967A1

STRIP

305 mm (12 in), Magnetic

1шт.

20

358920A1

KNOB

1шт.

21

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

22

D93753

PADLOCK

Incl. 23; If Equipped

1шт.

23

R29555

KEY

For Master Padlock Only

2шт.

23

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.
