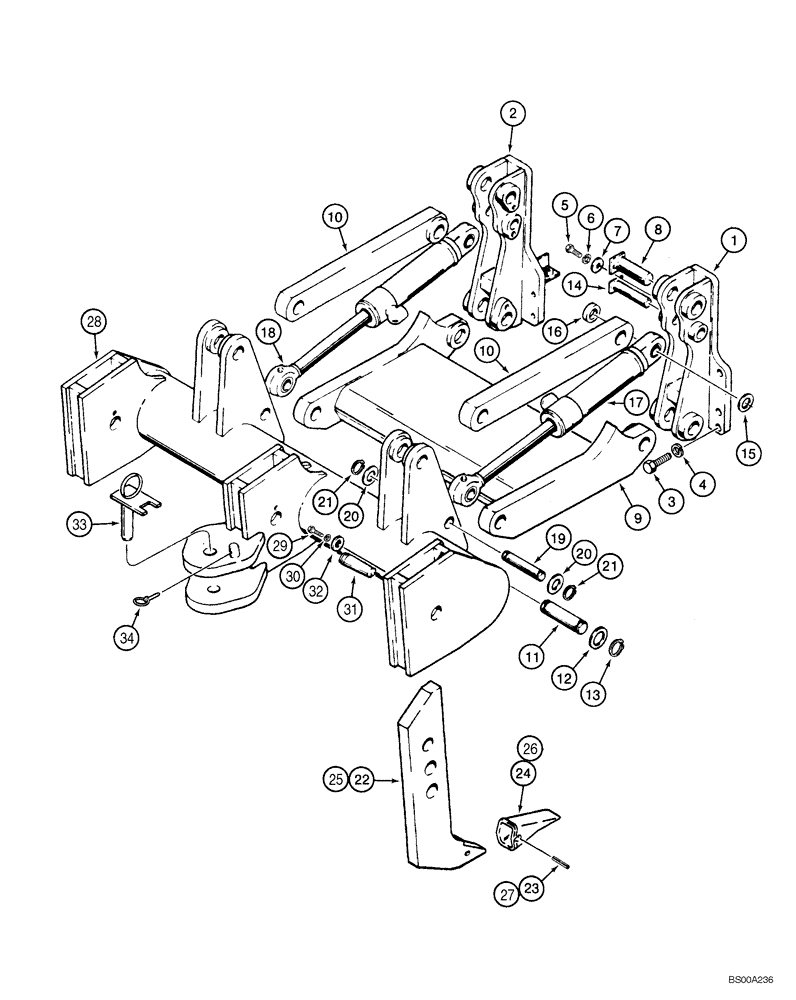

Запчасти Case 1150H_IND (09-04) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

R38914

PLATE

Left Hand

1шт.

2

R38913

PLATE

Right Hand

1шт.

3

107-91640

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

18шт.

4

D30196

WASHER

18шт.

5

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

6шт.

6

492-11062

BEARING WASHER,5/8"

6шт.

7

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

6шт.

8

R38745

PIN

4шт.

9

R38907

ARM

Lower

1шт.

10

R36114

ARM

Upper

2шт.

11

R28375

PIN,179.83mm OD x 50.8mm L

Tool Bar

4шт.

12

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

2-1/16 x 3 x 1/8

8шт.

13

103-16200

SNAP RING,#200, Ext

8шт.

14

R38178

PIN

Cylinder Mounting

2шт.

15

R26690

WASHER

Outer

2шт.

16

R26689

RING

Inner

2шт.

17

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 ID x 245 mm strk, Right Hand, Ripper, See Figure 08-15

1шт.

18

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 ID x 245 mm strk, Left Hand, Ripper, See Figure 08-15

1шт.

19

R57306

PIN,44.45mm OD x 179.8mm L

Cylinder Mounting

2шт.

20

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1-13/16 x 2-1/2 x 1/8

4шт.

21

103-16175

SNAP RING,#175, Ext

4шт.

R53053

Optional With 258724A1, Incl. 22 - 24, Not Available As An Assembly, Order Component Parts Below, Also Order 7-52620

3шт.

22

122237A1

SHANK, BUCKET TOOTH

1шт.

23

L32090

PIN

No. 25

1шт.

24

D55468

TOOTH

1шт.

258724A1

Optional With R53053, Incl. 25 - 27, Not Available As An Assembly, Order Component Parts Below, Also Order 7-52620

3шт.

25

258725A1

SHANK

1шт.

26

258726A1

TOOTH

1шт.

27

258727A1

SPECIAL PIN

1шт.

28

R57305

BEAM

Tool, Includes Drawbar

1шт.

29

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

3шт.

30

492-11062

BEARING WASHER,5/8"

3шт.

31

R45977

AXLE PIN,50.8mm OD x 139.7mm L

3шт.

32

419223A1

WASHER

Finish Zinc Plated, Replaces 70523 Washer Plain ( 5/8 in ) Used On Some Models

3шт.

33

R26750

PIN

1шт.

34

A30338

PIN

1шт.
