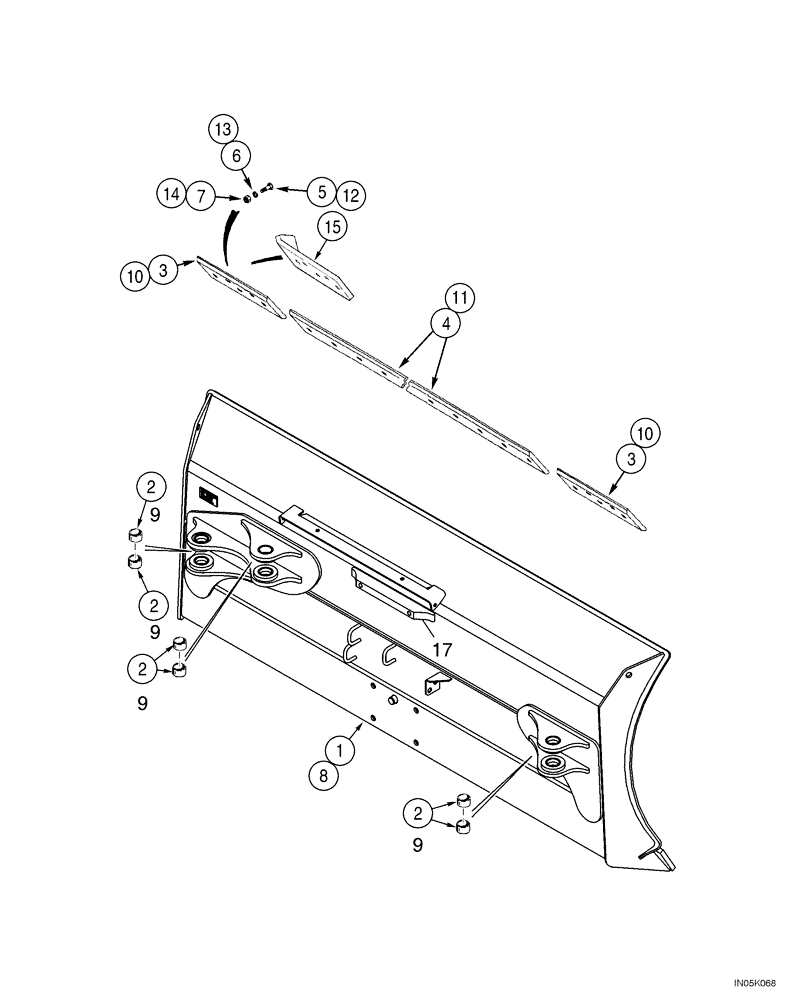

Запчасти Case 1150H_IND (09-03) - BLADE, DOZER - EDGES, CUTTING (09) - CHASSIS/ATTACHMENTS

Dozer Blade 2794 mm (110 inch)

1шт.

1

179433A2

BLADE

2794 mm (110 in), Incl. 2

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2 x 2-1/2 x 1-1/4

6шт.

3

R42490

END

442 mm (17-7/16 in)

2шт.

4

179402A1

EDGE

1908 mm (75-1/8 in), Center, Bolt Holes 13

1шт.

5

R56474

PLOW BOLT

3/4 x 2-1/2; 8

23шт.

6

92-11075

LOCK WASHER,3/4"

23шт.

7

29-1012

NUT,3/4"-10, G8

23шт.

Dozer Blade 3150 mm (124 inch)

1шт.

8

179434A2

BLADE

3150 mm (124 in), Incl. 9

1шт.

9

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2 x 2-1/2 x 1-1/4

6шт.

10

R42490

END

442 mm (17-7/16 in)

2шт.

11

126519A1

EDGE

2258 mm (88-5/16 in), Center, Bolt Holes 15

1шт.

12

R56474

PLOW BOLT

3/4 x 2-1/2; 8

25шт.

13

92-11075

LOCK WASHER,3/4"

24шт.

14

29-1012

NUT,3/4"-10, G8

25шт.

Heavy Duty Cutting Edges

1шт.

15

R41910

EDGE, CUTTING

Left Hand

1шт.

16

R41911

EDGE, CUTTING

Right Hand, Not Illustrated

1шт.

17

R100146

KIT

Plate, Retainer

1шт.
