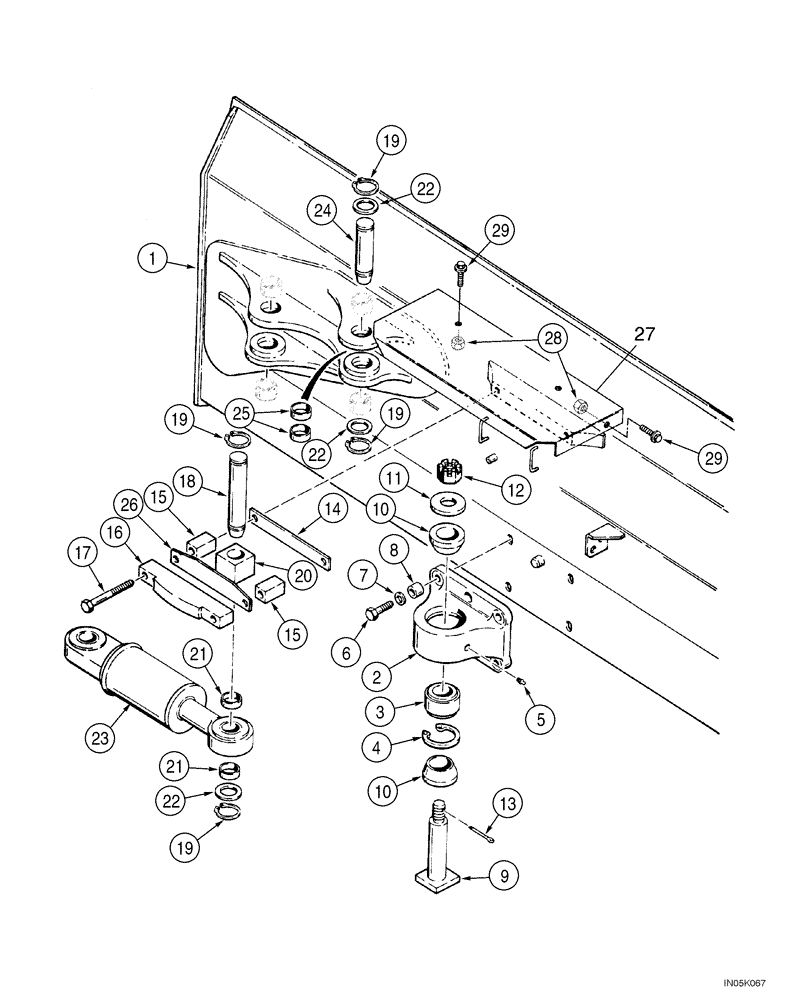

Запчасти Case 1150H_IND (09-02) - BLADE, DOZER - CYLINDERS, MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Blade, Dozer, See Figure 09-03

1шт.

R58345

PIVOT

Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket

1шт.

3

R55698

SPHERICAL BEARING,69.85mm ID x 120.65mm OD x 70.87mm W

121 mm (4-3/4 in) OD, Sealed, Self-Aligning

1шт.

4

39325

SNAP RING,4.75", Int, #475

4.75", Int, #475

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.

8

R30398

SPACER

4шт.

9

R45099

PIN

1шт.

10

R55700

SPACER

2шт.

11

R26660

WASHER,40.39mm ID x 101.6mm OD x 12mm Thk

1шт.

12

25-1224

SLOTTED NUT,1 1/2"-6, G5

1-1/2

1шт.

13

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

1шт.

14

R57681

PLATE

Outer

1шт.

15

R54725

SPACER

2шт.

16

R54722

RETAINER

Upper Pin

1шт.

17

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

Use Loctite No. 242

2шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

18

R54769

PIN,50.77mm OD x 284.8mm L

248 mm (9-3/4 in), Upper Pivot, Tilt Cylinder

1шт.

19

103-16200

SNAP RING,#200, Ext

4шт.

20

346627A1

BLOCK

Replaces R57680

1шт.

21

R53383

WASHER,52.32mm ID x 57.15mm OD x 17mm L

2шт.

22

495-81282

WASHER,2 1/16" x 3" x .109"

1шт.

23

G110694

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 ID x 120 mm strk, Tilt, See Figure 08-13

1шт.

24

R54768

PIN,50.77mm OD x 195.8mm L

Tilt Cylinder, Closed End

1шт.

25

R53383

WASHER,52.32mm ID x 57.15mm OD x 17mm L

Pin, Tilt Cylinder

2шт.

26

R57679

WEAR PLATE

Inner

1шт.

27

184272A1

GUARD

Hose

1шт.

28

231-1448

NUT,1/2"-13, GB

4шт.

29

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.
