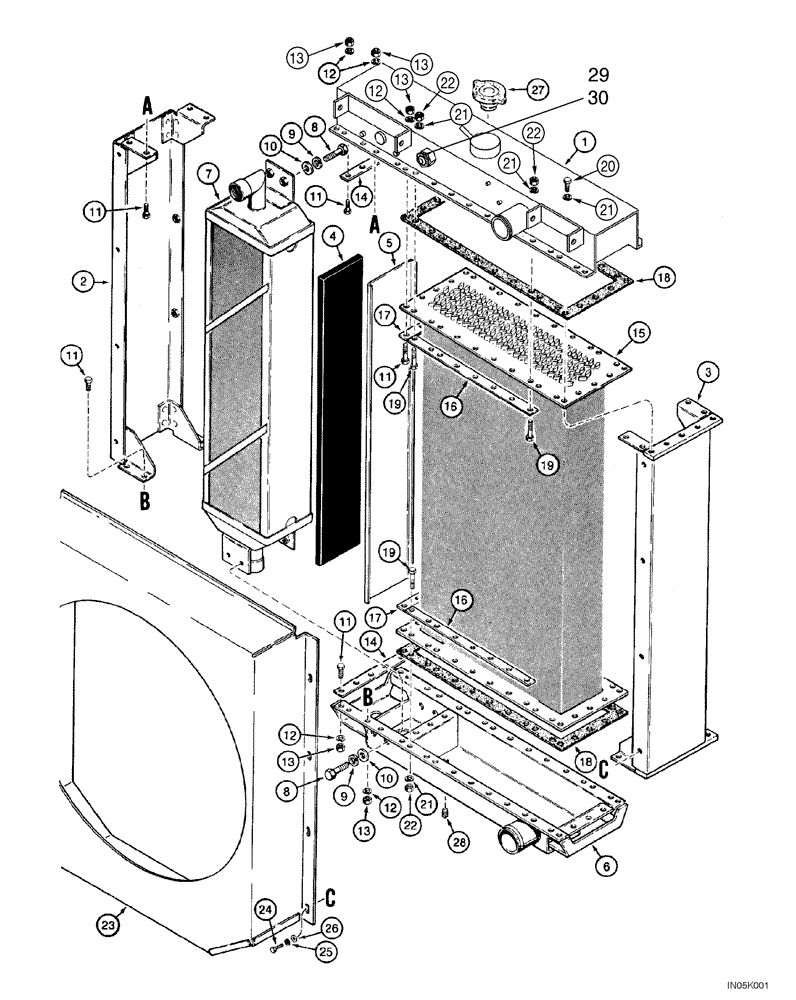

Запчасти Case 1150H_IND (02-04) - RADIATOR ASSY (02) - ENGINE

374011A1

RADIATOR

Incl. 1 - 30

1шт.

1

416450A1

RESERVOIR

Top

1шт.

2

N14808

PANEL, SIDE

Left

1шт.

3

N14803

PANEL, SIDE

Right

1шт.

4

N14811

INSULATOR

Vibration Damper

1шт.

5

N14812

LARGE PLATE

PLATE, LARGE Reinforcement

1шт.

6

N14801

RESERVOIR

Bottom

1шт.

7

N14807

OIL COOLER

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

8шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

12

492-11031

LOCK WASHER,5/16"

12шт.

13

425-105

NUT,5/16"-18, G5

12шт.

14

N14804

LARGE PLATE

PLATE, LARGE 191 mm (7-1/2 in), Reinforcement, Upper and Lower

2шт.

15

N14802

CORE, RADIATOR

1шт.

16

N14805

LARGE PLATE

PLATE, LARGE 360 mm (14-3/16 in), Front and Rear

4шт.

17

N14804

LARGE PLATE

PLATE, LARGE 191 mm (7-1/2 in), Reinforcement, Inner

2шт.

18

N14806

GASKET

Core, Upper and Lower

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

54шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

10шт.

21

492-11031

LOCK WASHER,5/16"

54шт.

22

425-105

NUT,5/16"-18, G5

54шт.

23

N14809

DEFLECTOR

1шт.

24

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

25

492-11025

LOCK WASHER,1/4"

8шт.

26

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

8шт.

27

A170241

RADIATOR CAP

15 psi

1шт.

28

221-841

PLUG

1/4 PT

1шт.

29

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

30

412530A1

SIGHTGLASS

1шт.
