Запчасти Case 1150H_IND (08-24) - SECTION ASSEMBLY - LIFT (08) - HYDRAULICS

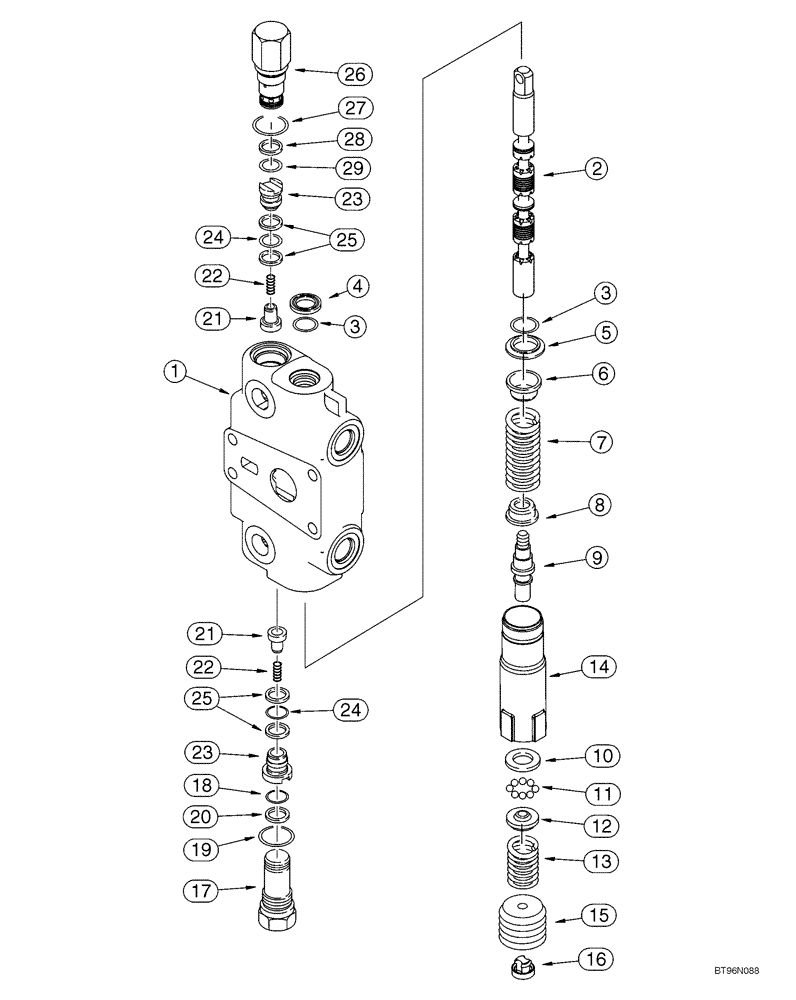

Схема запчастей Case 1150H_IND - (08-24) - SECTION ASSEMBLY - LIFT (08) - HYDRAULICS
14
2
3
23
17
24
15
8
9
11
22
20
25
6
13
10
21
7
23
16
18
25
3
27
29
22
28
1
12
24
26
21
19
4
5

Артикул

Название

Примечание

Количество

234151A3

HYD VALVE SECTION

Lift, With Manual Detent, Incl. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

Oil, Replaces 65457C1

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

Centering Spring, Upper, Small

1шт.

7

G109302

SPRING

Centering

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

Centering Spring, Lower, Large

1шт.

9

G106396

SHAFT,74.68mm L

Detent

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

Ball Retainer

1шт.

11

211-1009

BALL

9/32; 24,CRS

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

1шт.

13

1986568C1

SPRING,Compression, 31.24mm OD x 45.64mm L

Detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

Detent

1шт.

15

G109384

PLUG,3/8" - 18

1шт.

16

G107780

VALVE, CHECK

1шт.

G33122

PLUG,ORB

Relief Port, Incl. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

Plug

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

1346219C3

VALVE, CHECK

Hollow Poppet Pin, Incl. 21 - 25

2шт.

21

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

Hollow Poppet Pin, With Orifice

1шт.

22

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

23

1343708C1

PLUG

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

26

233803A1

VALVE

Incl. 27 - 29, Internal Parts Not Serviced

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

1346108C2

SEAL KIT

Incl. 3, 4, 18 - 20, 24, 25, For Additional Components, See Figure 08-20, 08-21, 08-23, 08-25

1шт.
