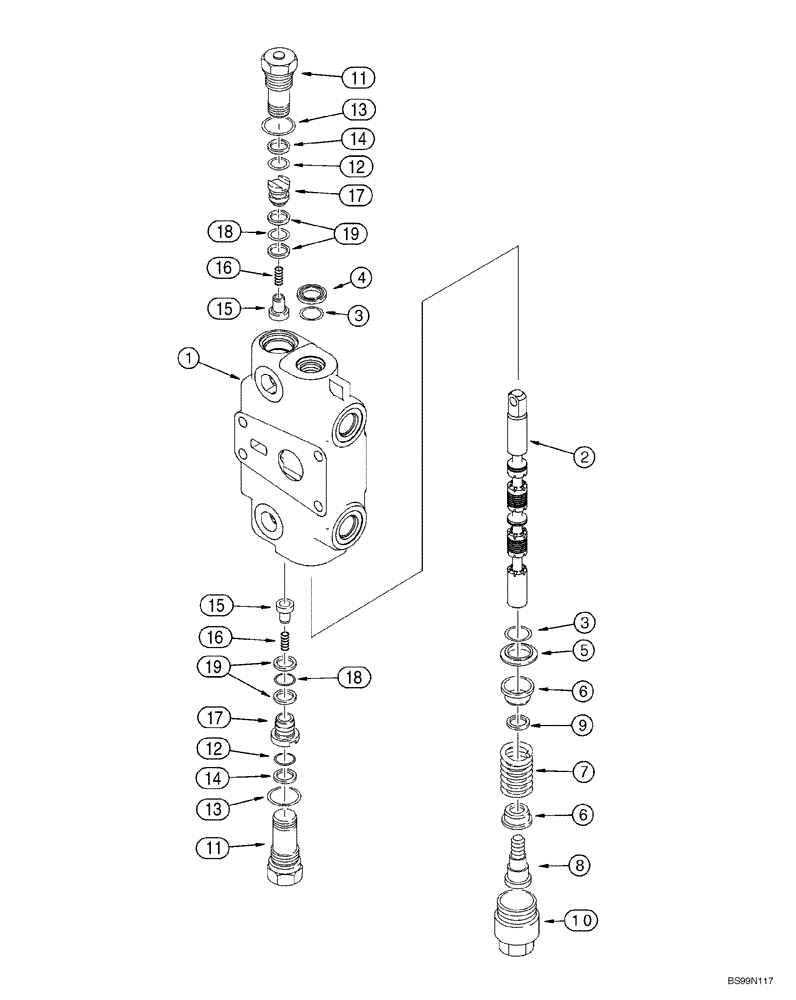

Запчасти Case 1150H_IND (08-23) - SECTION ASSEMBLY - TILT AND ANGLE (08) - HYDRAULICS

234152A3

HYD VALVE SECTION

Tilt, Angle, Incl. 1 - 19

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

Oil, Replaces 65457C1

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

7

1994596C1

SPRING

Centering

1шт.

8

G106409

SEAT

Spool End

1шт.

9

332753A1

SPACER

1шт.

10

P0033080G

SCREW

Centering Spring, Spool End, Lower

1шт.

G33122

PLUG,ORB

Relief Port, Incl. 11 - 14

2шт.

11

NSS

NOT SOLD SEPARAT

Plug

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

1346219C3

VALVE, CHECK

Hollow Poppet Pin, Incl. 15 - 19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

Hollow Poppet Pin, With Orifice

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

17

1343708C1

PLUG

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

1346108C2

SEAL KIT

Incl. 3, 4, 12 - 14, 18, 19, For Additional Components, See Figure 08-20, 08-21, 08-24, 08-25

1шт.
