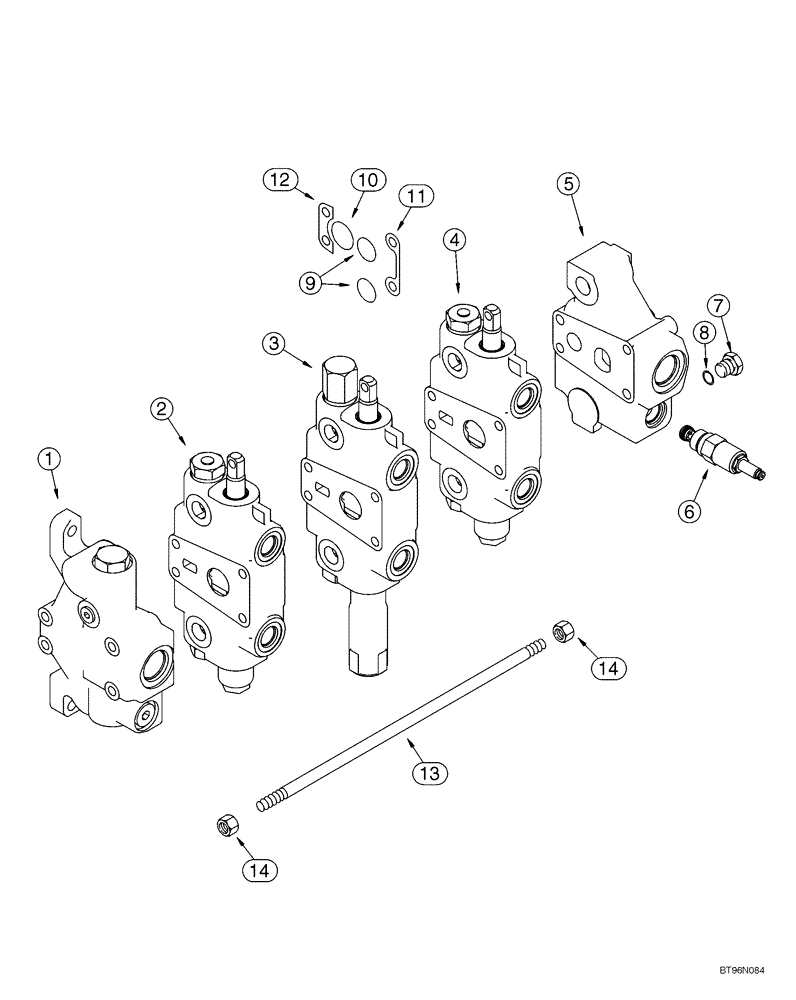

Запчасти Case 1150H_IND (08-20) - VALVE, CONTROL - 3 SECTIONS (08) - HYDRAULICS

229079A2

VALVE, CONTROL

3 spool, Incl. 1 - 14

1шт.

1

234153A1

VALVE

Inlet, See Figure 08-22

1шт.

2

234152A3

HYD VALVE SECTION

Tilt, See Figure 08-23

1шт.

3

234151A3

HYD VALVE SECTION

Lift, With Manual Detent, See Figure 08-24

1шт.

4

234152A3

HYD VALVE SECTION

Angle, See Figure 08-23

1шт.

5

132004A2

HYD VALVE SECTION

Outlet, See Figure 08-26

1шт.

6

282618A1

VALVE

Pilot Operated, Component Parts Not Serviced Separately, For Service Order G110098

1шт.

6a

G110098

KIT

External Seals, Not Illustrated

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

Diagnostic Port, Outlet Section, Incl 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

12шт.

10

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

4шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Port side of control valve

4шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Non-port side of control valve

4шт.

13

G108805

STUD

3/8 x 11-3/4

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

1346108C2

SEAL KIT

Incl. 10, 11, For Additional Components, See Figure 08-21, 08-23 - 08-25

1шт.
