Запчасти Case 1150H_IND (08-16) - VALVE, CONTROL - BRACKET, LINKAGE (08) - HYDRAULICS

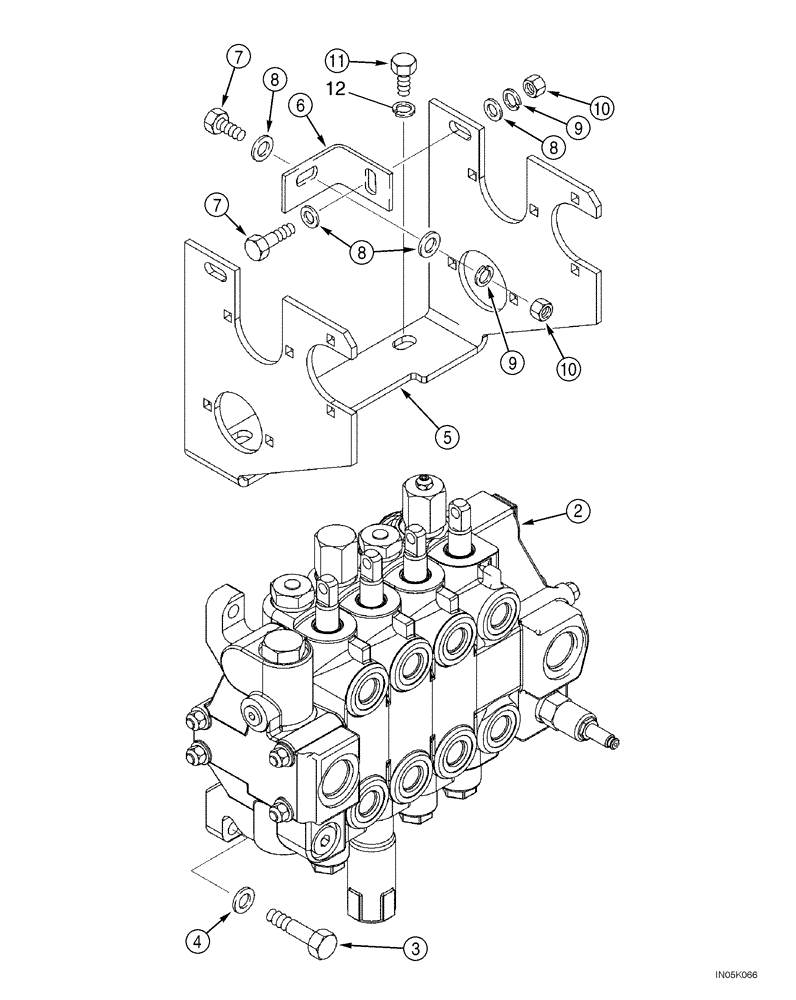

Схема запчастей Case 1150H_IND - (08-16) - VALVE, CONTROL - BRACKET, LINKAGE (08) - HYDRAULICS
10
10
9
3
12
8
4
2
7
8
8
5
9
11
7
6

Артикул

Название

Примечание

Количество

1

229079A2

VALVE, CONTROL

3 spool, Equipment, Not Illustrated, See Figure 08-20

1шт.

2

225601A2

VALVE, CONTROL

4 spool, Equipment, See Figure 08-21

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

5

372112A1

BRACKET

Mounting, Linkage

1шт.

6

R41335

SUPPORT

2шт.

7

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

Выбрано товаров: 12
