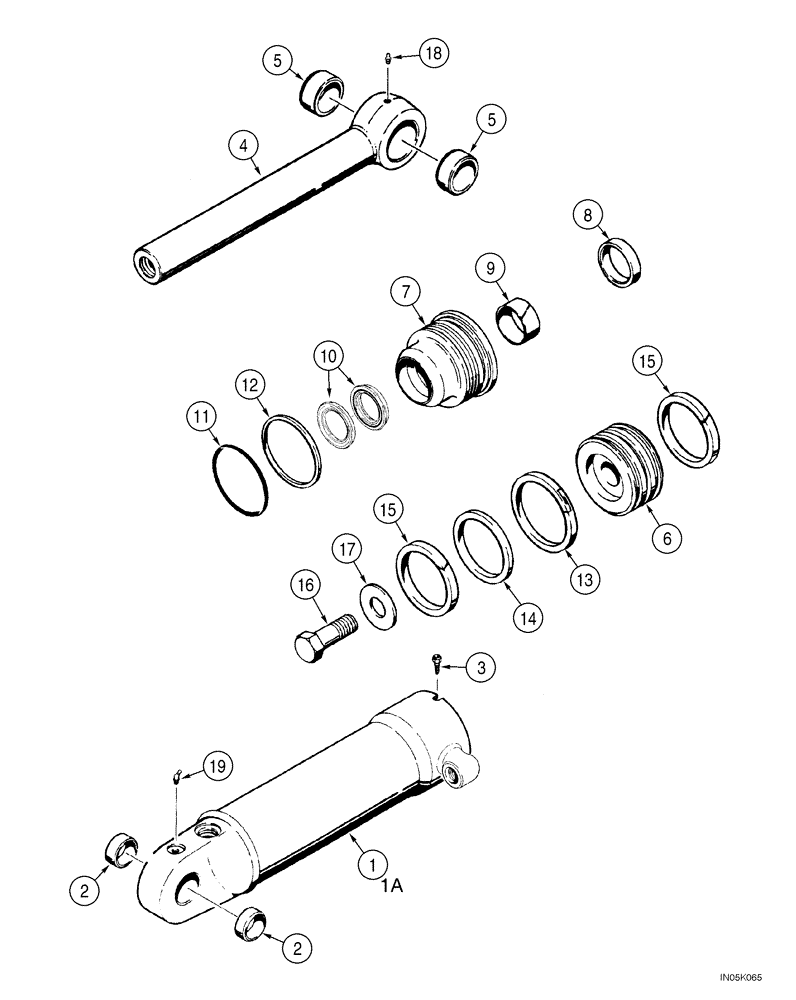

Запчасти Case 1150H_IND (08-15) - CYLINDER ASSY - RIPPER (08) - HYDRAULICS

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 ID x 245 mm strk, Ripper, Right Hand, Incl. 1 - 19

1шт.

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 ID x 245 mm strk, Ripper, Left Hand, Incl. 1A - 19

1шт.

1

G100284

TUBE,18.75" L

Right Hand, Incl. 2

1шт.

1a

G100285

TUBE,18.75" L

Left Hand, Incl. 2

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

4

G100290

ROD

51 mm (2 in) dia, Incl. 5

1шт.

5

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

6

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

7

1543019C1

CYLINDER END CAP

1шт.

1543273C1

SEAL KIT

Incl. 8 - 15

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

9

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 1543273C1

1шт.

11

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

13

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

14

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

15

G100448

RING,101.6mm OD, Ext

2шт.

16

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

17

G32351

WASHER

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
