Запчасти Case 1150H_IND (08-14) - CYLINDER ASSY - ANGLE (08) - HYDRAULICS

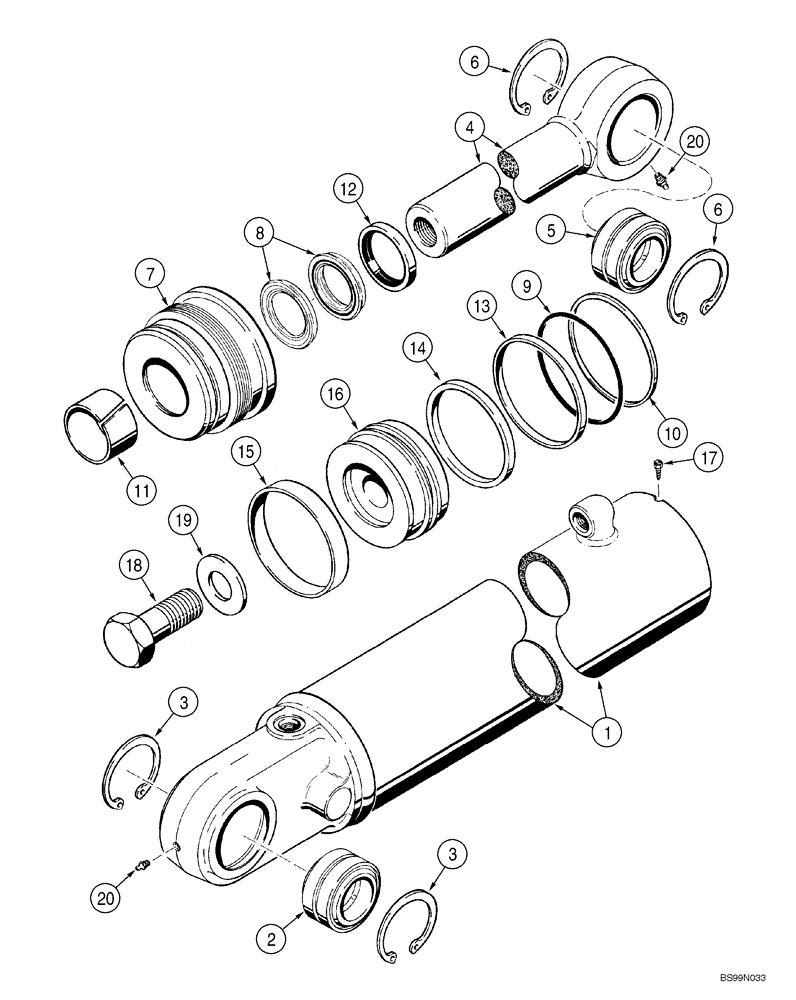

Схема запчастей Case 1150H_IND - (08-14) - CYLINDER ASSY - ANGLE (08) - HYDRAULICS
12
6
16
20
18
14
4
11
19
3
7
13
5
10
6
17
2
9
20
1
8
3
15

Артикул

Название

Примечание

Количество

G110702

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 ID x 381 mm strk, Angle, Incl. 1 - 20

2шт.

1

G109832

TUBE,4.995" ID x 5" DIA x 26.23" L

Incl. 2, 3

1шт.

2

D23601

HOUSING

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

2шт.

4

G110703

PISTON ROD

64 mm (2-1/2 inch) dia, Incl. 5, 6

1шт.

5

D23601

HOUSING

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

2шт.

7

1543069C1

PACKING GLAND

1шт.

1542915C2

SEAL KIT

Incl. 9 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 1542915C2

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

13

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

14

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

15

G102090

RING,127mm OD, Ext

1шт.

16

G110701

JACK PISTON

1шт.

17

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 22
