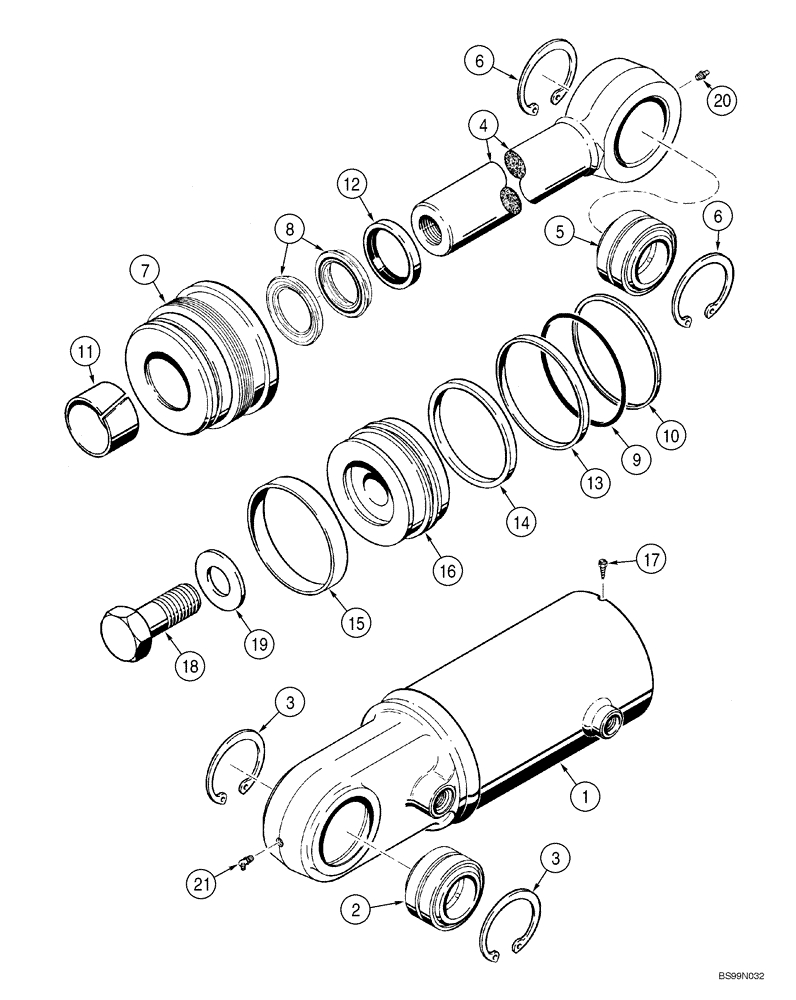

Запчасти Case 1150H_IND (08-13) - CYLINDER ASSY - TILT (08) - HYDRAULICS

G110694

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 ID x 120 mm strk, Tilt, Incl. 1 - 20

1шт.

1

G109824

TUBE,4.995" ID x 16.14" L

Incl. 2, 3

1шт.

2

D23601

HOUSING

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

2шт.

4

1346161C1

PISTON ROD

64 mm (2-1/2 inch) dia, Incl. 5, 6

1шт.

5

D23601

HOUSING

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

2шт.

7

1543069C1

PACKING GLAND

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 1542879C1

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

13

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

14

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

15

G102090

RING,127mm OD, Ext

1шт.

16

G110701

JACK PISTON

1шт.

17

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.
