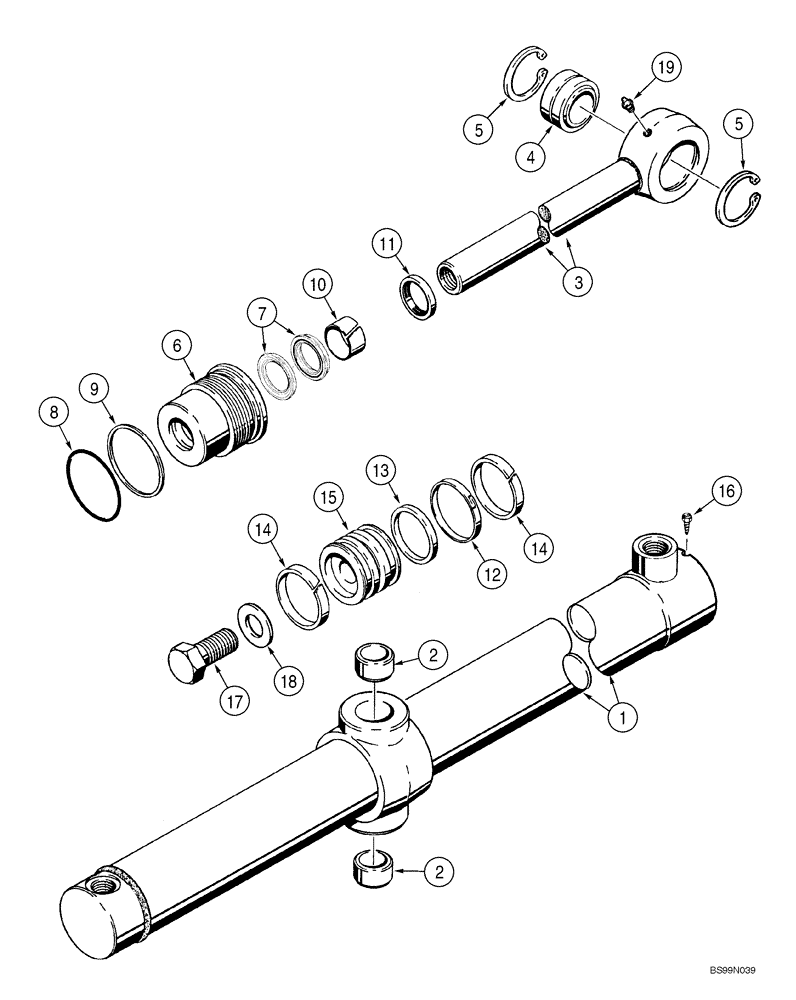

Запчасти Case 1150H_IND (08-12) - CYLINDER ASSY - LIFT (08) - HYDRAULICS

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

83 ID x 818 mm strk, Lift, Incl. 1 - 19

2шт.

1

G109820

TUBE,3.24" ID x 3.75" OD x 39.65" L

Incl. 2

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

2шт.

3

G109822

PISTON ROD

45 mm (1-3/4 inch) dia, Incl. 4, 5

1шт.

4

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

1шт.

5

100-21244

SNAP RING,2.44", Int, #244

2шт.

6

1542972C1

CYLINDER END CAP

1шт.

1543265C1

SEAL KIT

Incl. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 1543265C1

1шт.

8

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

10

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

11

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

12

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

13

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

14

S109445

RING,82.55mm OD, Ext

1шт.

15

G100642

PISTON

1шт.

16

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
