Запчасти Case 1150H_IND (08-11) - HYDRAULICS - RIPPER CIRCUIT (08) - HYDRAULICS

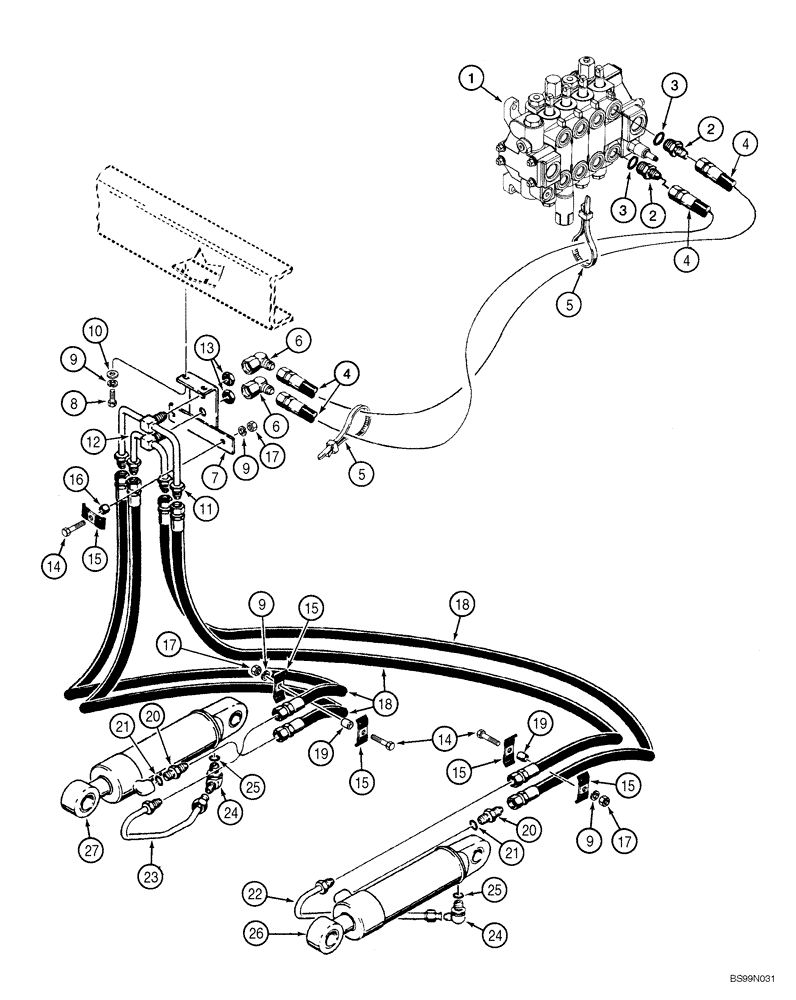

Схема запчастей Case 1150H_IND - (08-11) - HYDRAULICS - RIPPER CIRCUIT (08) - HYDRAULICS
7
6
25
15
21
15
13
10
9
2
5
4
14
15
17
15
17
19
9
9
23
20
20
17
1
16
27
24
12
5
4
25
26
9
11
2
21
14
15
19
18
24
3
6
18
3
4
8
22

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve, Control, Four Spool, See Figure 08-16

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

6

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

7

R35545

BRACKET

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

11

R35549

TUBE,0.625" OD x 6.2, 3.75" L

Upper, A Port

1шт.

12

R46492

TUBE,0.625" OD x 4, 2.1" L

Lower, B Port

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

15

D40236

CLAMP

6шт.

16

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

Tubes at Bracket

2шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

F93300

HOSE

737 mm (29 in)

4шт.

19

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Incl. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

R29282

TUBE,0.625" OD

Right Hand, To Closed End of Cylinder

1шт.

23

R29283

TUBE,0.625" OD

Left Hand, To Rod End of Cylinder

1шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 ID x 245 mm strk, Ripper, Right Hand, See Figure 08-15, 09-04

1шт.

27

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 ID x 245 mm strk, Ripper, Left Hand, See Figure 08-15, 09-04

1шт.

Выбрано товаров: 27
