Запчасти Case 1150H_IND (08-10) - HYDRAULICS - TILT AND ANGLE CIRCUITS (08) - HYDRAULICS

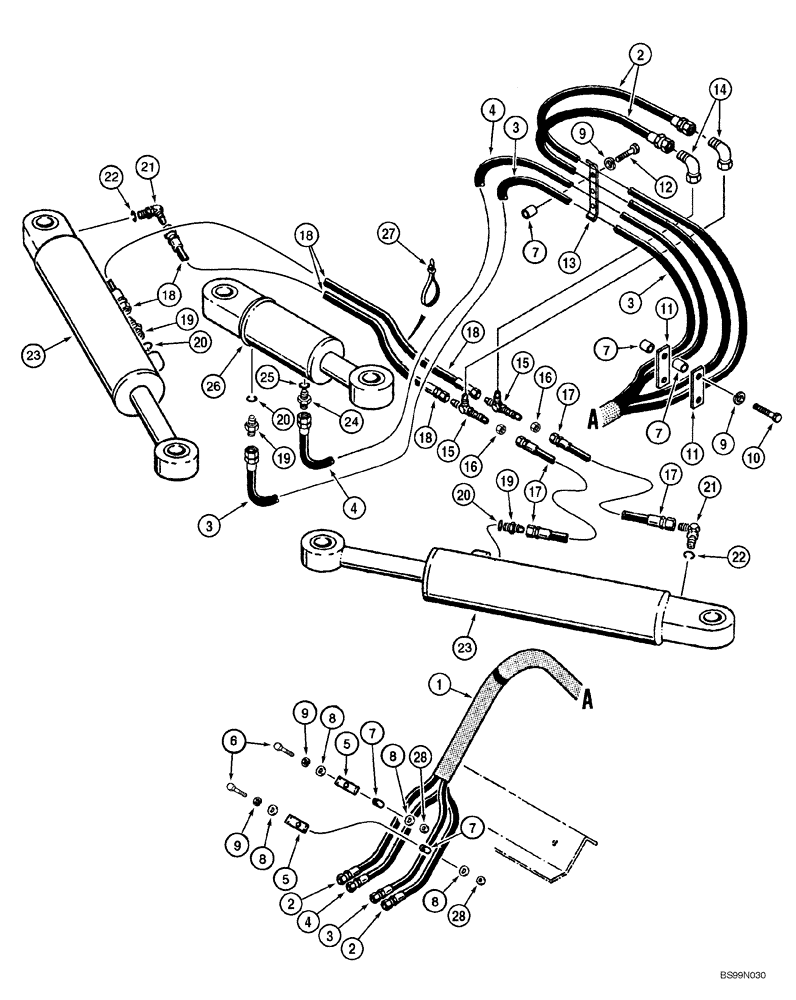

Схема запчастей Case 1150H_IND - (08-10) - HYDRAULICS - TILT AND ANGLE CIRCUITS (08) - HYDRAULICS
7
18
2
4
22
5
23
4
2
9
15
7
6
10
4
18
3
28
5
11
22
9
18
17
20
21
21
7
19
3
8
11
18
2
12
19
7
16
16
23
20
14
15
25
8
19
17
17
9
28
3
8
1
3
26
7
9
13
24
20
8
27

Артикул

Название

Примечание

Количество

Hoses and Cylinders

1шт.

1

142302A1

SLEEVE

1шт.

2

R55074

HOSE ASSY.

1880 mm (74 in), To Tee, Angle Circuit

2шт.

3

185243A1

HOSE ASSY.

2134 mm (84 in), Right Hand Tilt Tube, To Closed End of Cylinder

1шт.

4

185244A1

HOSE ASSY.

1981 mm (78 in), Left Hand Tilt Tube, To Rod End of Cylinder

1шт.

5

D40236

CLAMP

2шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

7

D36040

BUSHING

9шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

9

492-11038

LOCK WASHER,3/8"

7шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

123171A1

LARGE PLATE

PLATE, LARGE

2шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

13

R40287

CLAMP

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

15

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

2шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

17

36443

HOSE

635 mm (25 inch), Angle Cylinder, Right Hand

2шт.

18

R38217

HOSE,12.7mm ID x 1143mm L, SAE 100R2

1143 mm (45 in), Angle Cylinder, Left Hand

2шт.

19

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 20

3шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

G110702

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 ID x 381 mm strk, Angle, See Figure 08-14, 09-01

2шт.

24

243436A1

HYD CONNECTOR

Incl. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

G110694

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 ID x 120 mm strk, Tilt, See Figure 08-13, 09-02

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

2шт.
