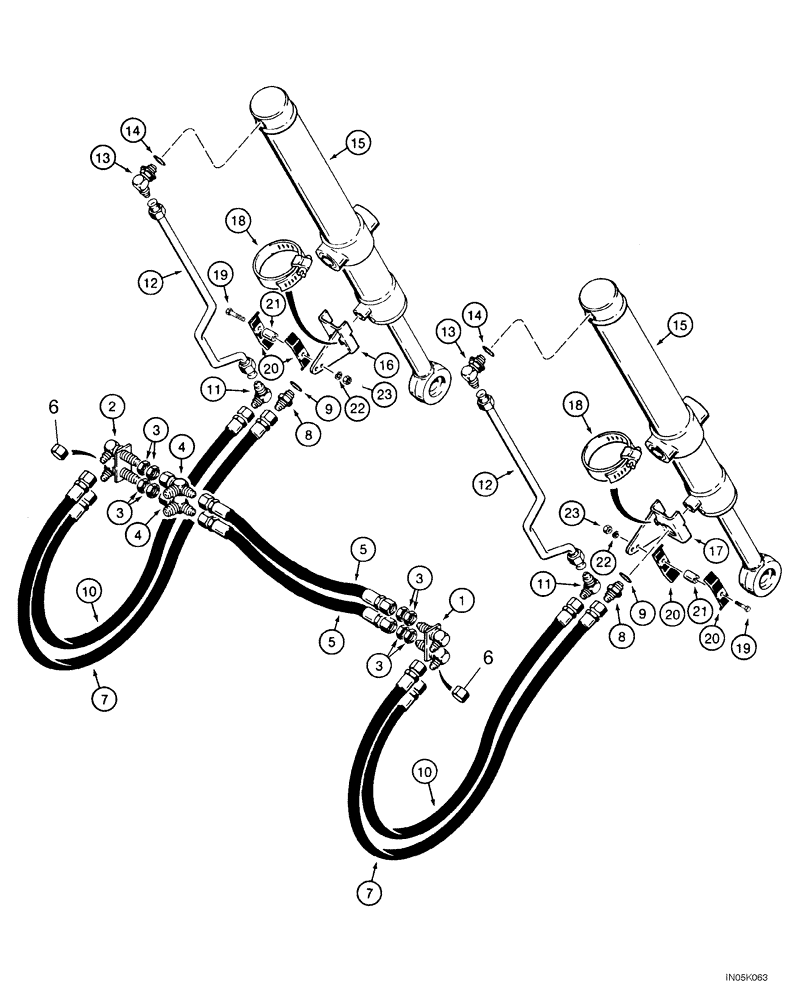

Запчасти Case 1150H_IND (08-07) - HYDRAULICS - LIFT CIRCUIT (08) - HYDRAULICS

Hoses and Cylinders

1шт.

1

R30962

MANIFOLD

Right Hand

1шт.

2

R30963

MANIFOLD

Left Hand

1шт.

3

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

8шт.

4

218-5483

TEE,1-1/16" - 12 JIC x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

5

R25834

HOSE

635 mm (25 in)

2шт.

6

218-335

CAP,37 Degree, 1 1/16"-12

If Used

4шт.

7

R55904

HOSE

889 mm (35 in)

2шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

L107795

HOSE

711 mm (28 in)

2шт.

11

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

1-1/16 fl x fl

2шт.

12

R54914

PIPE,19.05 mm OD x 73.7, 793 mm L

2шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

83 ID x 818 mm strk, Lift, See Figure 08-12, 09-01

2шт.

16

R54841

GUARD ASSY.

Left Hand

1шт.

17

R55270

GUARD ASSY.

Right Hand

1шт.

18

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

2шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

20

R55275

FIXING BRACKET

4шт.

21

D40925

SPACER

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.
