(02-02) - FAN - FAN BELT

Запчасти Case 1150H_IND (02-02) - FAN - FAN BELT (02) - ENGINE

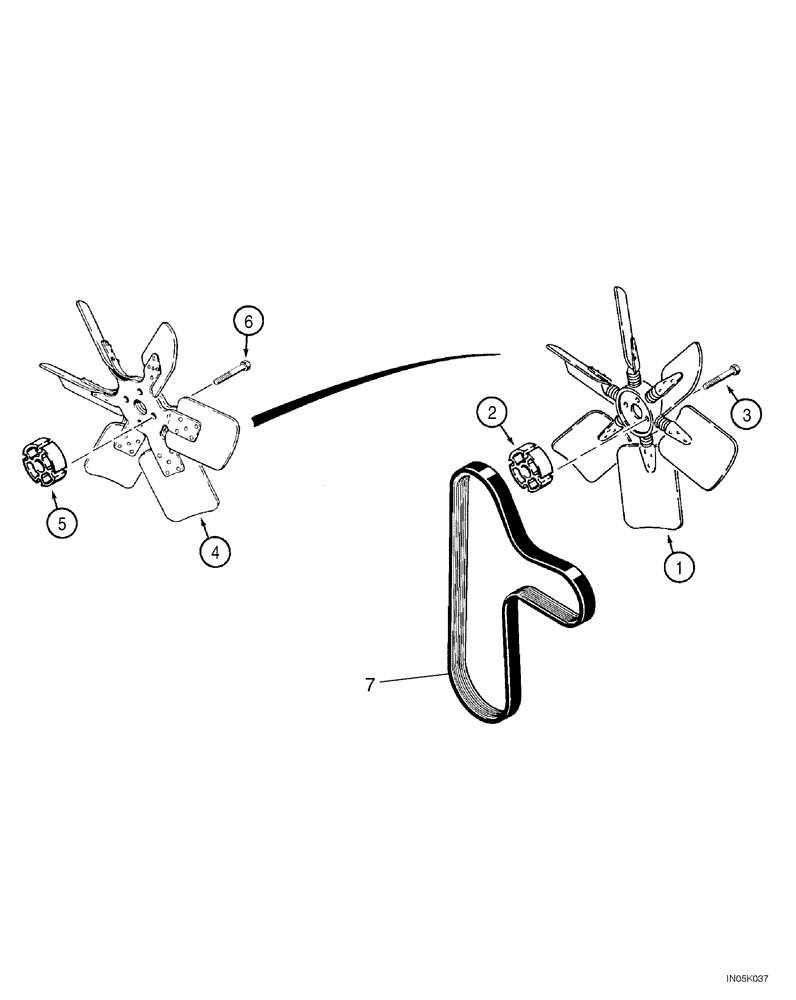

Схема запчастей Case 1150H_IND - (02-02) - FAN - FAN BELT (02) - ENGINE
7
2
5
6
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A173571

FAN

Reversible If Equipped

1шт.

2

A189318

SPACER

85 mm; Used With Ref. 1

1шт.

3

193427A1

FLANGE BOLT,M10 x 1.5 x 110mm

M10 x 110; Used With Ref. 1

4шт.

4

A173557

FAN

Pusher If Equipped

1шт.

5

A184544

SPACER

24 mm; Used With Ref. 4

1шт.

6

193426A1

BOLT

M10 x 70; Used With Ref. 4

4шт.

7

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

1шт.
