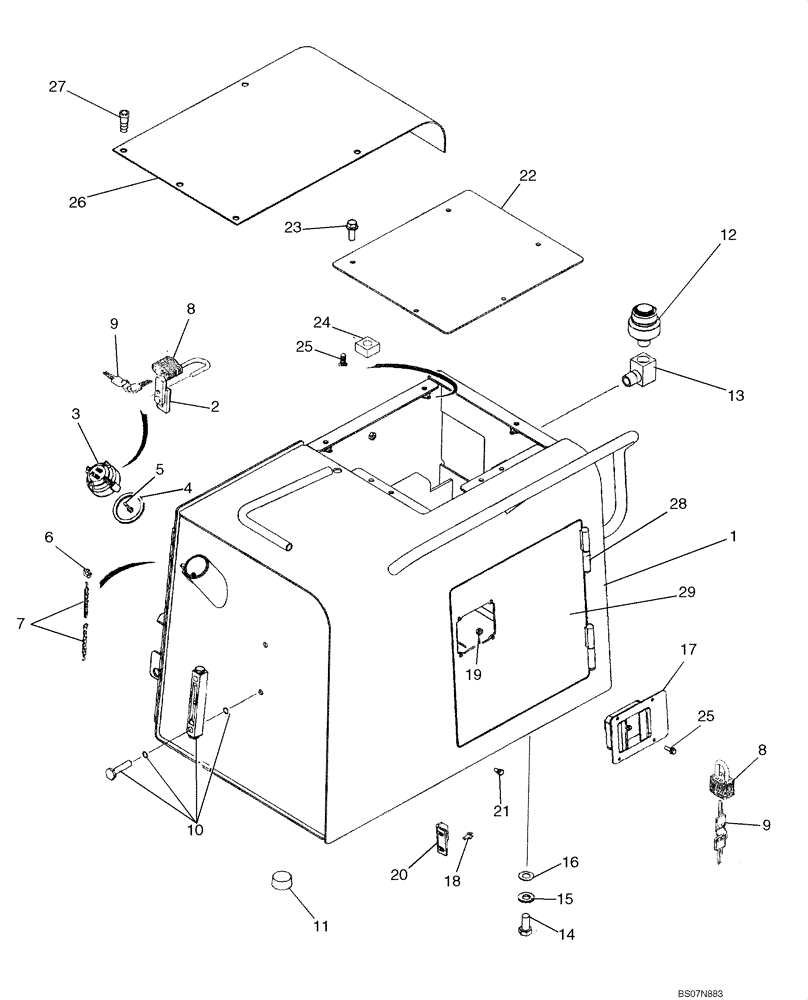

Запчасти Case 1150H (08-01) - RESERVOIR, HYDRAULIC - COVERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
369676A2
TANK
With Grab Handle, Models Without Cab, Incl. 2; Incl. Ref 28, 29 As Weld On Parts To Tank But Can Be Serviced
1шт.
1a
369707A2
TANK
Without Grab Handle, Models With Cab, Not Illustrated; Incl. Ref 28, 29 As Weld On Parts To Tank But Can Be Serviced
1шт.
2
R46704
BRACKET
Fill Tube, Weld-On
1шт.
3
L128669
CAP
Fill Tube
1шт.
4
R46984
GASKET
1шт.
5
301-14712
SCREW,Drive, #12 x 3/4"
2шт.
6
R48634
FASTENER
1шт.
7
R47786
CHAIN (CE)
241 mm (9-1/2 in)
1шт.
8
D93753
PADLOCK
Incl. 9
2шт.
9
R29555
KEY
For Master Padlock Only
2шт.
9
D93751
SET OF 2 KEYS
For Yale Padlock Only
2шт.
10
226456A1
LEVEL GAUGE
Component Parts Not Serviced Separately
1шт.
11
86637727
DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF
1-1/4, Use Loctite No. 592
1шт.
B17425
LOCTITE
Loctite, No. 592, 50 ml
1шт.
12
R42714
BREATHER
Use Loctite No. 592
1шт.
B17425
LOCTITE
Loctite, No. 592, 50 ml
1шт.
13
221-1415
ELBOW,90 Degree, 3/4"-14, NPT
3/4 PT
1шт.
14
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
4шт.
15
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
4шт.
16
D44330
SHIM,.031" Thk
4шт.
17
R56221
LATCH
1шт.
18
458-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
6шт.
19
231-5344
FLANGE NUT,Flg, 1/4"-20
4шт.
20
R56397
LARGE PLATE
PLATE, LARGE
1шт.
21
A161780
BUMPER
2шт.
22
382210A1
COVER
Top, Models Without Cab
1шт.
23
160-102
BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd
Used with ref. 22
5шт.
24
224-2806
SQUARE NUT,Sq, 3/8"-16, G2, Hvy
3/8
4шт.
25
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
4шт.
26
386985A1
COVER
Top, Models With Cab
1шт.
27
161-112
HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"
5/16 x 1/2, Used With REF 26
7шт.
28
355364A1
FIXED HINGE
Incl. In Ref 1 369676A2 and Ref 2 369707A2 as Weld-Ons to the Tank
2шт.
29
369685A1
DOOR COVER
Side of Hydraulic Tank; Incl. In Ref 1 369676A2 and Ref 2 369707A2 as Weld-Ons to the Tank
1шт.
Выбрано товаров: 33
