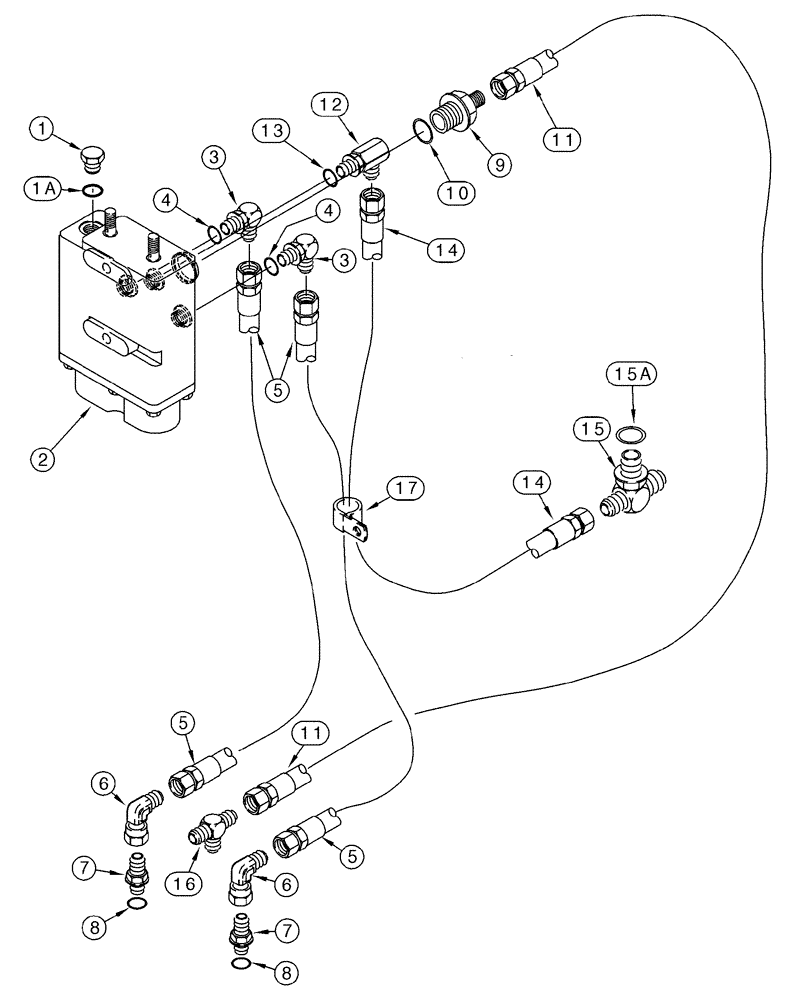

Запчасти Case 1150H (07-02) - BRAKE - HYDRAULIC LINES (07) - BRAKES

1

76349

PLUG,9/16" - 18 ORB

Incl. 1A

1шт.

2

1272218C1

VALVE

See Figure 07-04

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 4

2шт.

5

R58723

HOSE

1163 mm (45-7/8 in)

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 8

1шт.

9

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

9/16 fl x 1-1/16 Or, Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

476 mm (18-3/4 inch), Return

1шт.

12

362641A1

FITTING

Incl. 13

1шт.

14

143462A1

HOSE ASSY.

1117 mm (44 in)

1шт.

15

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj O-ring br, Incl. 15A, See Figure 06-18, REF 32

1шт.

15a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

9/16 fl x fl x 1/4 PT, See Figure 06-18, REF 1

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
