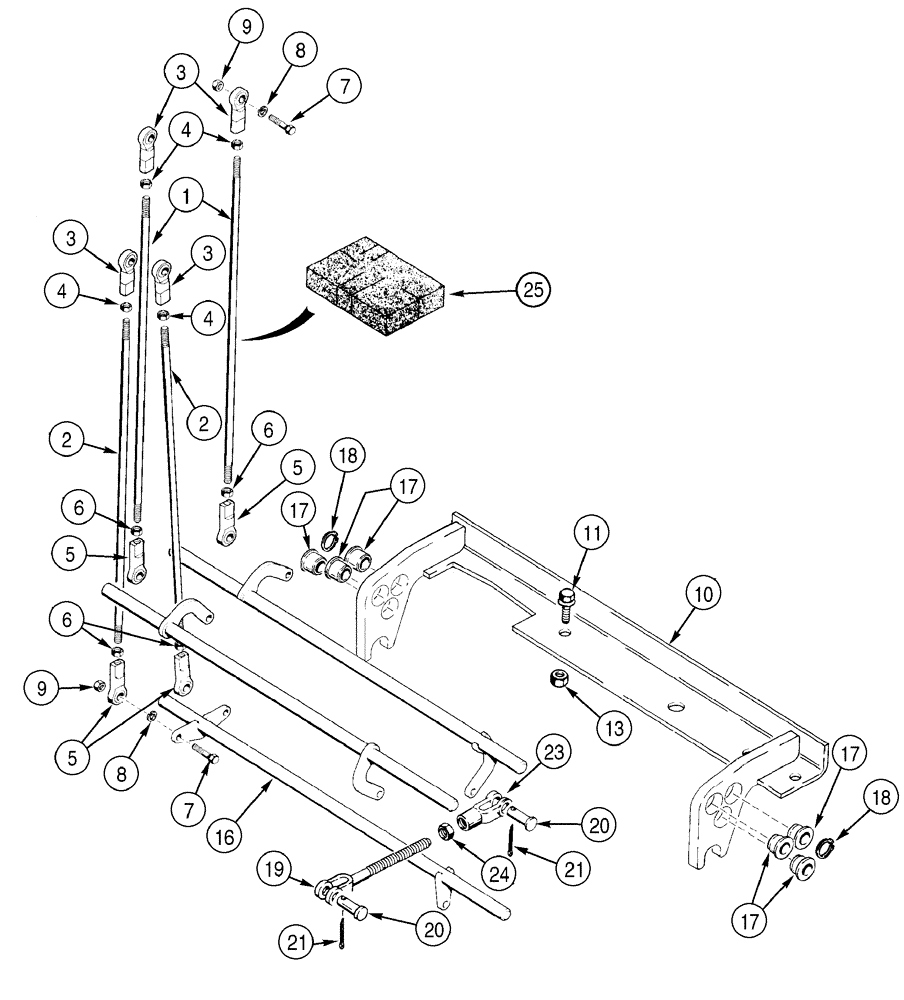

Запчасти Case 1150H (06-24) - CONTROLS - TRANSMISSION (06) - POWER TRAIN

Connecting Rods and Shafts

1шт.

1

221492A1

ROD

480 mm (18-7/8 in), Track Speed Levers to Lower Cross Shafts

2шт.

2

221495A1

ROD

506 mm (19-15/16 in), Forward and Reverse Bellcranks to Lower Cross Shaft

2шт.

3

R47498

END

Ball Joint, Upper, Right Hand Threads

4шт.

4

425-155

JAM NUT,Jam, 5/16"-24, G5

RH Threads

4шт.

5

R58783

END

Ball Joint, Lower, Left Hand Threads

4шт.

6

129-216

JAM NUT,Jam, 5/16"-18, G5, LH

LH threads

4шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

8шт.

8

492-11031

LOCK WASHER,5/16"

Used as a spacer

8шт.

9

231-1445

NUT,5/16"-18, GB

8шт.

10

106710A1

BRACKET

1шт.

11

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

2шт.

13

231-1448

NUT,1/2"-13, GB

2шт.

14

R57883

SHAFT

Track Speed, Right Hand

1шт.

15

R57884

SHAFT

Track Speed, Left Hand

1шт.

16

106639A1

SHAFT

Forward/Neutral/Reverse

1шт.

17

130756A1

BUSHING

6шт.

18

100-1462

SNAP RING,#62, Ext

6шт.

19

L17663

YOKE

UNIVERSAL JOINT YOKE

3шт.

20

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

21

432-612

COTTER PIN,3/32" x 3/4"

6шт.

23

213-125

ADJUSTABLE CLEVIS,5/16" - 32

3шт.

24

425-155

JAM NUT,Jam, 5/16"-24, G5

3шт.

25

103584A1

PAD

Control Console, Cab Models

1шт.
