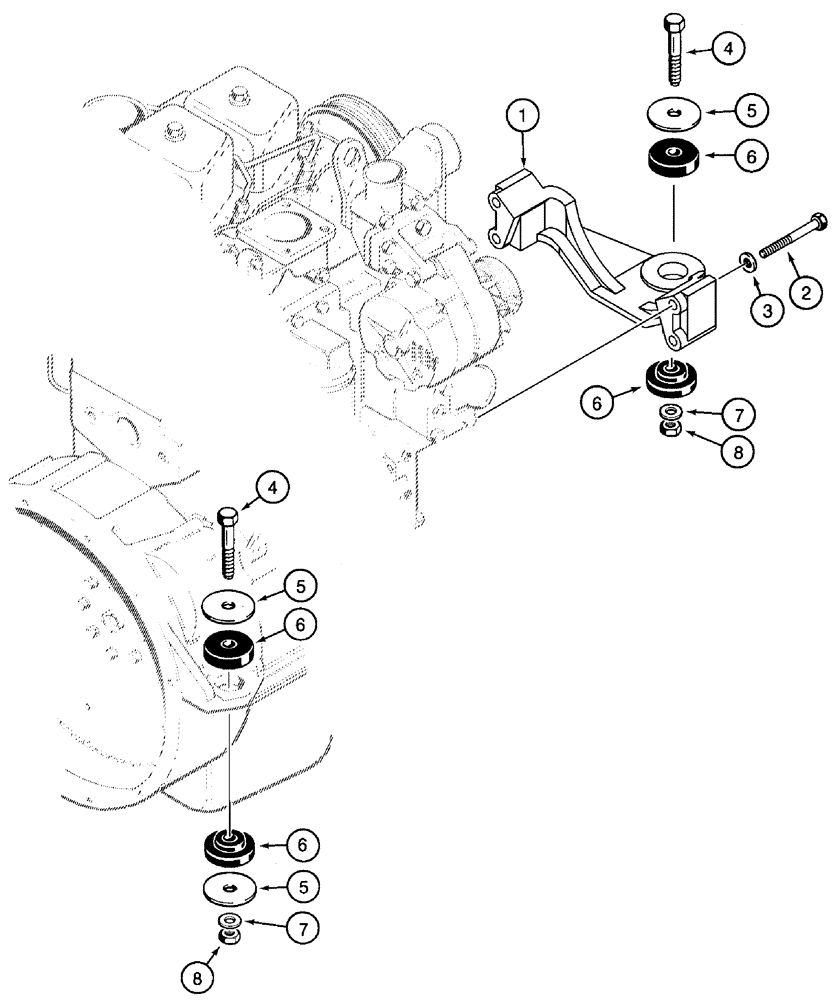

Запчасти Case 1150H (02-01) - ENGINE - MOUNTING (02) - ENGINE

1

A170985

BRACKET

1шт.

2

A171690

BOLT

M10 x 85; 10.9

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

4

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

5шт.

6

R49921

RUBBER MOUNTING

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

3шт.

8

231-14410

NUT,5/8"-11, GB

3шт.
