Запчасти Case 1150H (06-23) - CONTROLS - TRANSMISSION (06) - POWER TRAIN

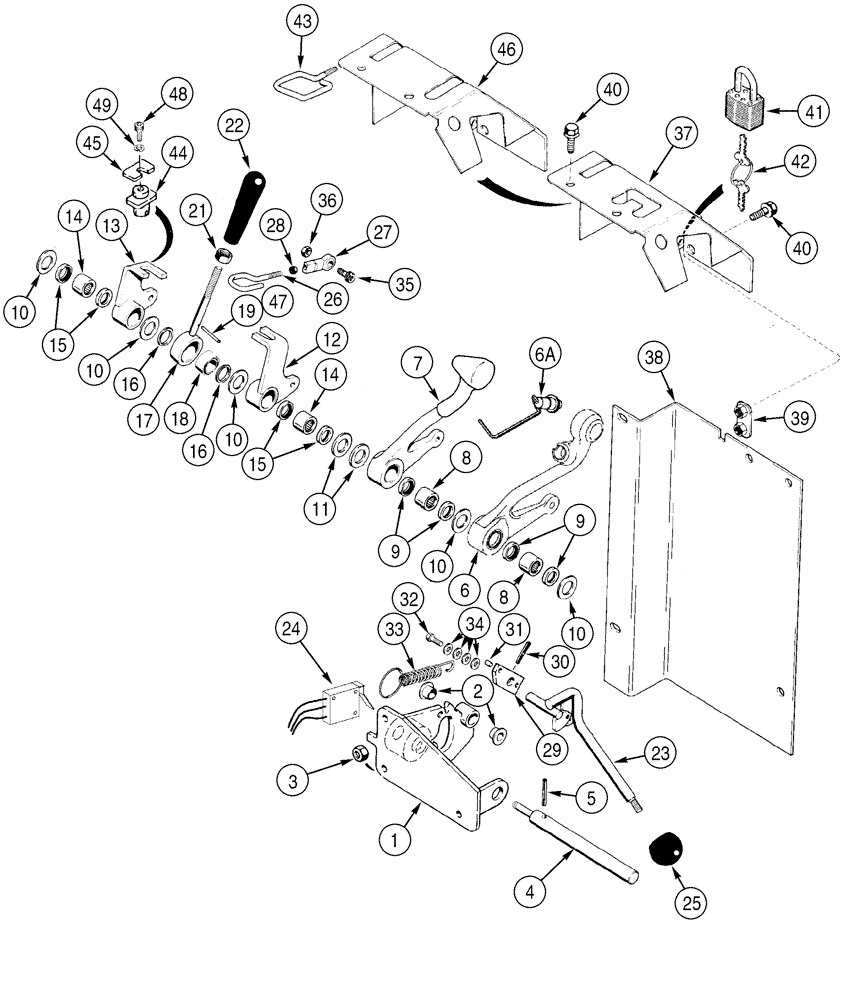

Схема запчастей Case 1150H - (06-23) - CONTROLS - TRANSMISSION (06) - POWER TRAIN
10
36
37
10
23
41
42
43
18
46
8
4
22
35
12
9
28
40
5
32
40
3
9
26
34
13
16
11
47
16
19
15
44
21
6a
10
14
1
30
38
10
14
24
25
39
10
29
33
49
7
8
31
6
15
17
45
2
27
48

Артикул

Название

Примечание

Количество

Control Levers and Console Covers

1шт.

1

106584A2

BRACKET

Throttle and Transmission Controls, Incl. 2

1шт.

2

R58311

BRONZE BUSHING

2шт.

2a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

3

231-1446

NUT,3/8" - 16, Gr 5

4шт.

3a

R58742

WASHER

3шт.

4

R57937

SHAFT

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

6

197392A1

LEVER ASSY.

Track Speed, Right Hand, Incl. 6A, 8, 9

1шт.

6a

197397A2

SWITCH

Alternate Action

1шт.

7

R58135

LEVER

Track Speed, Left Hand, Incl. 8, 9

1шт.

8

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

1шт.

9

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

10

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

Used As Shim

6шт.

11

R58209

SPACER

Nylon

2шт.

12

106582A1

LEVER

Forward Control, Incl. 14, 15

1шт.

13

106583A1

LEVER

Reverse Control, Incl. 14, 15

1шт.

14

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

1шт.

15

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

16

R57931

SPACER

2шт.

334479A1

LEVER

Forward/Neutral/Reverse, Incl. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Lever

1шт.

18

R58306

SPHERICAL BEARING,19.05mm ID x 31.75mm OD x 16.66mm W

1шт.

19

38-1822

PIN,1/8" OD x 1-3/8" L, Slotted

1/8" x 1 3/8", Slotted

1шт.

21

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

22

L55721

HANDLE

1шт.

23

R57938

LEVER

Neutral Start

1шт.

24

REF

INSTRUCTION

Switch, Neutral Start, See Figure 04-13

1шт.

25

70213

KNOB

1шт.

26

R58266

LINK

1шт.

27

L53928

BALL JOINT

Rod

1шт.

28

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

29

108505A1

ARM

1шт.

30

435-1416

GROOVED PIN,1/8" x 1", Type A

1/8" x 1", Type A

1шт.

31

138-92

LOCK PIN,3/16" x 3/4", Slotted

1шт.

32

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Use Loctite No. 242

1шт.

B17577

LOCTITE

Loctite, No. 242, 6 ml

1шт.

33

101993A1

SPRING

1шт.

34

495-81020

WASHER,17/32" x 1" x .030"

17/32 x 1 x 1/32

4шт.

35

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

1/4 x 3/4

1шт.

36

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

37

106610A1

COVER

Console, Upper

1шт.

38

R58184

LARGE PLATE

PLATE, LARGE Console, Front

1шт.

39

R58683

PLATE

1шт.

40

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

8шт.

41

D93753

PADLOCK

If Used, Incl. 42

1шт.

42

R29555

KEY

For Master Padlock Only

2шт.

42

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

Models with Optional Linear Shift Pattern

1шт.

43

R58821

LINK

Lever, Neutral Start

1шт.

44

R58819

SHAFT

1шт.

45

R58820

LARGE PLATE

PLATE, LARGE

1шт.

46

R58816

COVER

Console, Upper

1шт.

47

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

1шт.

48

461-7258

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1/2"

1/4 x 1/2

1шт.

49

492-11025

LOCK WASHER,1/4"

1шт.

Выбрано товаров: 56
