Запчасти Case 1150H (06-21) - FILTER ASSY, OIL (06) - POWER TRAIN

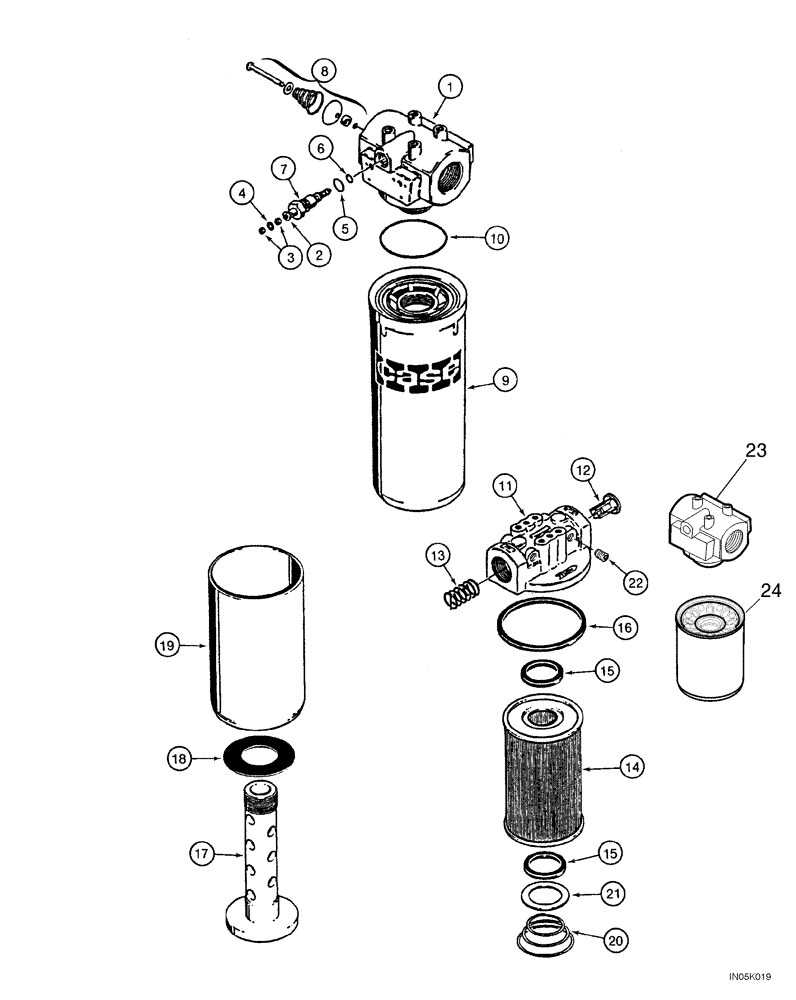

Схема запчастей Case 1150H - (06-21) - FILTER ASSY, OIL (06) - POWER TRAIN
17
7
21
2
19
18
9
8
3
10
13
23
5
20
6
16
15
1
11
12
4
15
24
22
14

Артикул

Название

Примечание

Количество

Transmission Oil Filter

1шт.

Hydraulic Oil Filter

1шт.

R54348

FILTER ASSY

Incl. 1 - 10

2шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

N13268

PRESSURE SWITCH

Incl. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

4

NSS

NOT SOLD SEPARAT

Washer

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Indicator

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

N9086

HYDRAULIC OIL FILTER

Incl. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Element

1шт.

10

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

Transmission Suction Line Filter

1шт.

R50627

FILTER

Incl. 11 - 22; No Longer Available, Order 409222A1

1шт.

409222A1

HYDRAULIC OIL FILTER

Incl. 23, 24

1шт.

11

NSS

NOT SOLD SEPARAT

Head

1шт.

12

D74434

VALVE POPPET

1шт.

13

N14031

SPRING

1шт.

14

S233969

FILTER, ENGINE OIL

FILTER, OIL

1шт.

15

W12214

GASKET

2шт.

16

T29789

SEALING RING,4.35" ID x 0.25" Width

SEALRING

1шт.

17

T29796

SUPPORT

1шт.

18

T29795

GASKET

Lower

1шт.

19

T29794

HOUSING

1шт.

20

T29793

SPRING

1шт.

21

T42195

WASHER

1шт.

22

86637724

PLUG,1/8" - 27 NPT

4шт.

23

NSS

NOT SOLD SEPARAT

Head ; Used With Assy. 409222A1

1шт.

24

413872A1

ELEMENT

Used With Assy. 409222A1

1шт.

Выбрано товаров: 31
