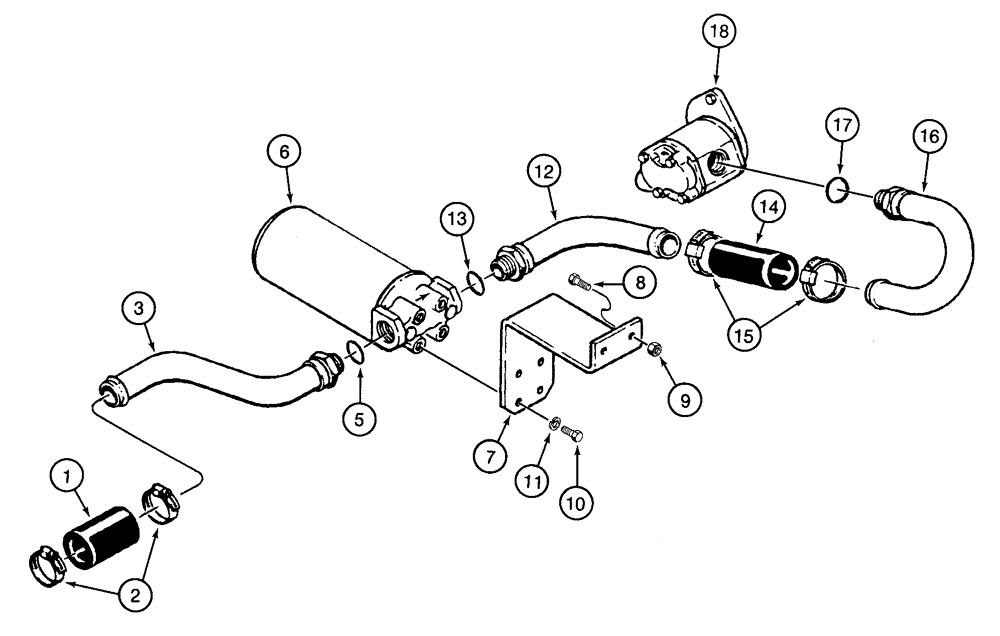

Запчасти Case 1150H (06-19) - TRANSMISSION - CRAWLER CIRCUIT (06) - POWER TRAIN

Transmission Suction Line

1шт.

1

R43918

HOSE

114 mm ( 4-1/2 inch), Cut From, R45924, At Transmission

1шт.

2

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

3

R52172

PIPE,38.1 mm OD

From Transmission

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

R50627

FILTER

Suction, See Figure 06-21

1шт.

7

R52169

SUPPORT

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

11

492-11031

LOCK WASHER,5/16"

4шт.

12

R52211

PIPE,38.1 mm OD x 117, 138 mm L

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

14

R43918

HOSE

114 mm ( 4-1/2 inch), To Pump, Cut From R45924

1шт.

15

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

16

R27913

TUBE,38.1 mm OD x 152.4, 114.3 mm L

To Pump

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

R25586

PUMP

Gear, See Figure 06-22

1шт.

R25586R

REMAN-HYD PUMP

1150H

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.
