Запчасти Case 1150H (06-18) - HYDRAULICS - CRAWLER CIRCUIT (06) - POWER TRAIN

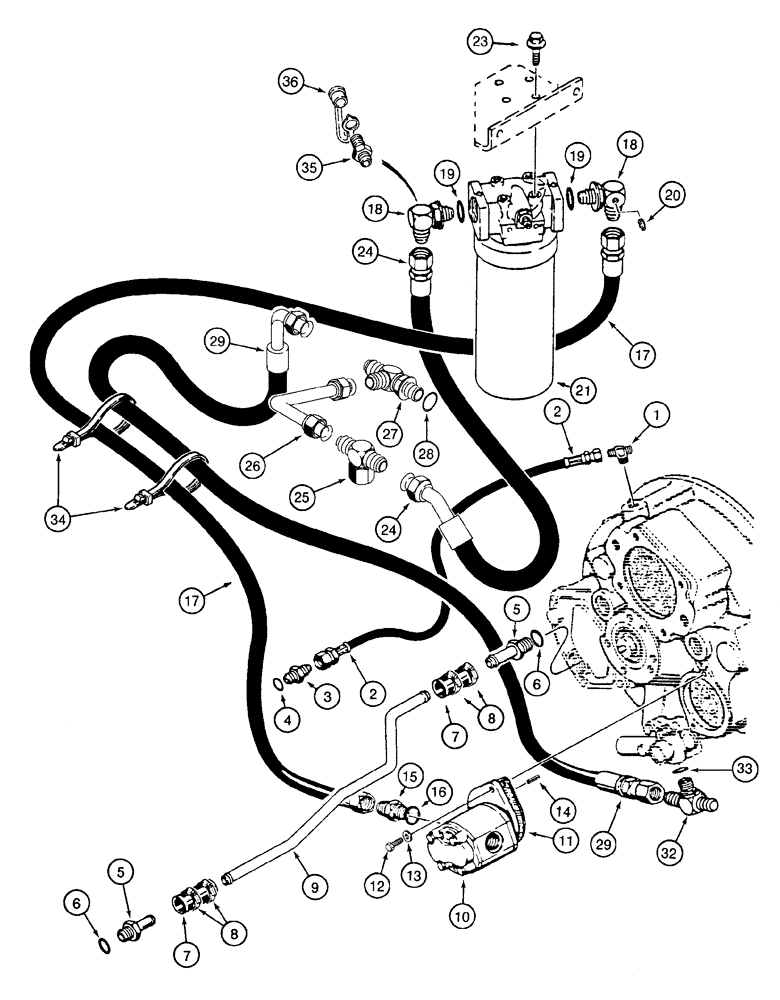

Схема запчастей Case 1150H - (06-18) - HYDRAULICS - CRAWLER CIRCUIT (06) - POWER TRAIN
36
17
19
19
26
15
18
6
29
2
10
24
6
35
12
2
23
7
7
33
29
27
1
28
9
18
8
21
5
14
16
24
5
20
3
25
11
34
13
32
4
17
8

Артикул

Название

Примечание

Количество

Torque, Serial Range: Converter-Transmission

1шт.

1

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

9/16 fl x fl x 1/4 PT, See Figure 07-02, REF 16

1шт.

2

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

Torque converter to transmission

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

1шт.

5

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

Incl. 6

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Cut From S118382X

2шт.

8

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

4шт.

9

R54215

PIPE,0.75" OD

To Transmission, Lower Drain

1шт.

10

R25586

PUMP

See Figure 06-22

1шт.

R25586R

REMAN-HYD PUMP

1150H

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

D32000

GASKET

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

D32117

COPPER WASHER

2шт.

14

38-11208

LOCK PIN,3/16" x 1/2", Slotted

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

R49572

HOSE

2286 mm (90 in)

1шт.

18

R49557

FITTING

With Check Port, Incl. 19

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1/8 PT

1шт.

21

R54348

FILTER ASSY

Transmission Oil, See Figure 06-21

1шт.

23

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

24

177160A1

HOSE ASSY.

650 mm (25-5/8 in), To Control Valve

1шт.

25

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16 sw x fl x fl, See Figure 06-15, REF 10

1шт.

26

140926A1

TUBE,19.05 mm OD, 139, 83.4 mm Length

See Figure 06-15, REF 9

1шт.

27

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

177131A1

HOSE ASSY.

1475 mm (58-1/8 in), To Pressure Regulator Valve

1шт.

32

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj O-ring br, Incl. 33, See Figure 07-02, REF 15

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

35

H434164

COUPLING

1шт.

36

H434163

DUST CAP

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 36
