Запчасти Case 1150H (06-17) - TRANSMISSION - RESERVOIR, FLUID RECOVERY (06) - POWER TRAIN

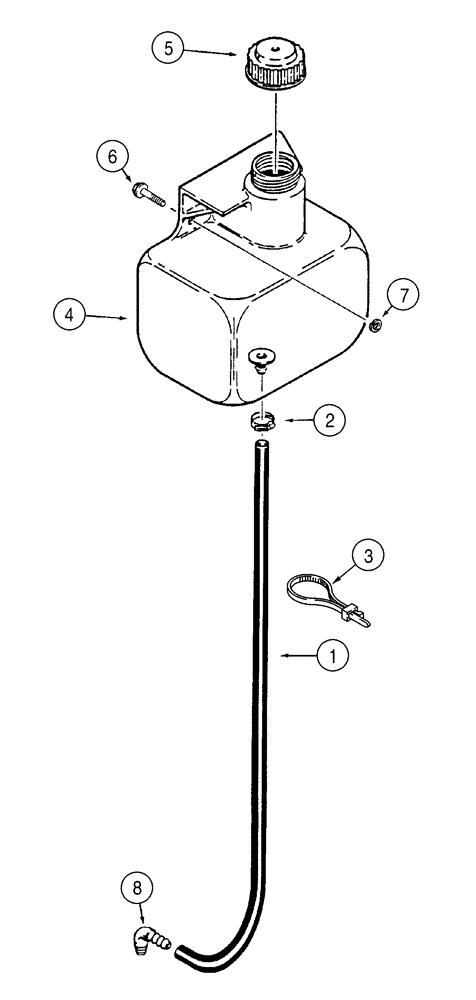

Схема запчастей Case 1150H - (06-17) - TRANSMISSION - RESERVOIR, FLUID RECOVERY (06) - POWER TRAIN
4
5
6
7
3
2
1
8

Артикул

Название

Примечание

Количество

1

R44038

LARGE HOSE

HOSE,LARGE 965 mm (38 in), Cut From A21561

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1/4 - 5/8

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

4

R50467

RESERVOIR

Fluid Recovery

1шт.

5

R50468

CAP

Reservoir

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

Выбрано товаров: 8
