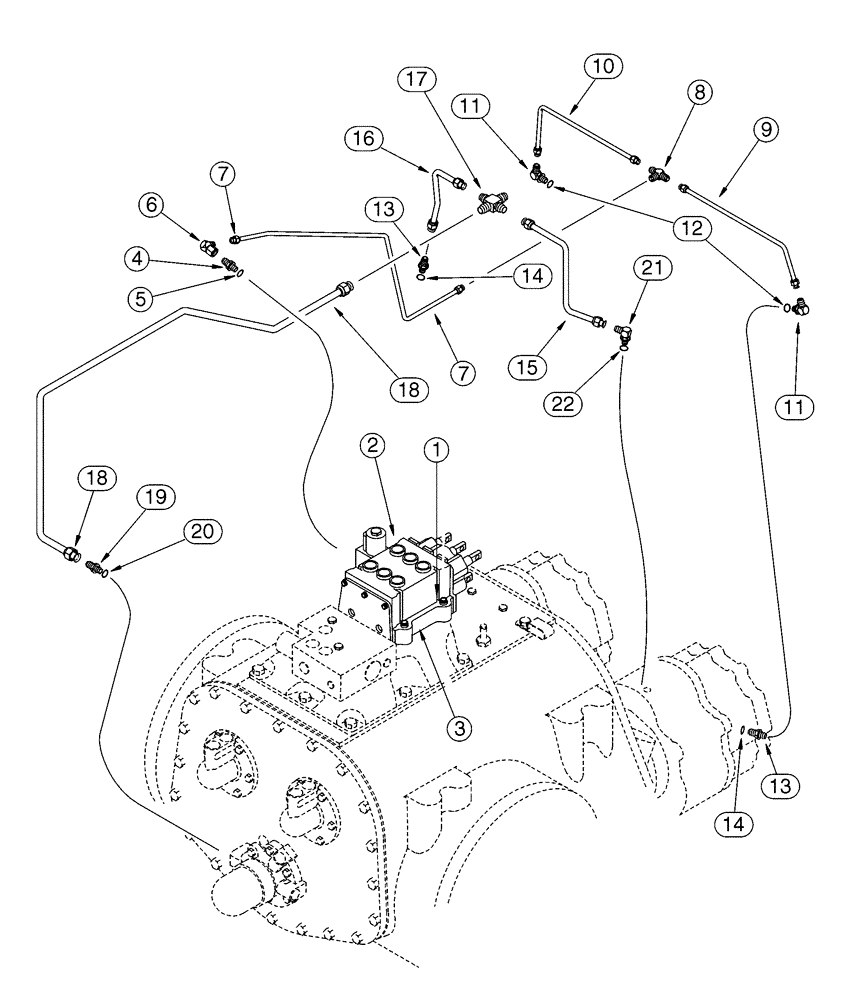

Запчасти Case 1150H (06-16) - TRANSMISSION - HYDRAULIC LINES (06) - POWER TRAIN

Brake Line

1шт.

376308A1

TRANSMISSION

Incl. 1 - 22, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

3/8 x 2; 8

4шт.

2

125588A4

VALVE

See Figure 06-11

1шт.

3

1986527C1

GASKET

Control Valve

1шт.

4

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

140924A2

TUBE,9.52 mm OD, 564, 172.6 mm Length

Supply, Parking Brake

1шт.

8

218-593

TEE,9/16"-18, 37 Degree

9/16 fl x fl x fl

1шт.

9

140922A2

TUBE,9.25 mm OD, 224.4, 144.3 mm Length

Parking Brake, Right Hand

1шт.

10

175181A2

TUBE,9.52 mm OD

Parking Brake, Left Hand

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 12

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

3шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

144796A2

TUBE,12.7 mm OD, 173, 111.9 mm Length

Brake Lubrication, Right Hand

1шт.

16

144798A2

TUBE,12.7 mm OD, 184.4, 71.7 mm Length

Brake Lubrication, Left Hand

1шт.

17

141431A1

FITTING

1шт.

18

144800A2

TUBE,15.88 mm OD, 682.1, 172 mm Length

Brake Lubrication, Center

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Incl. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
