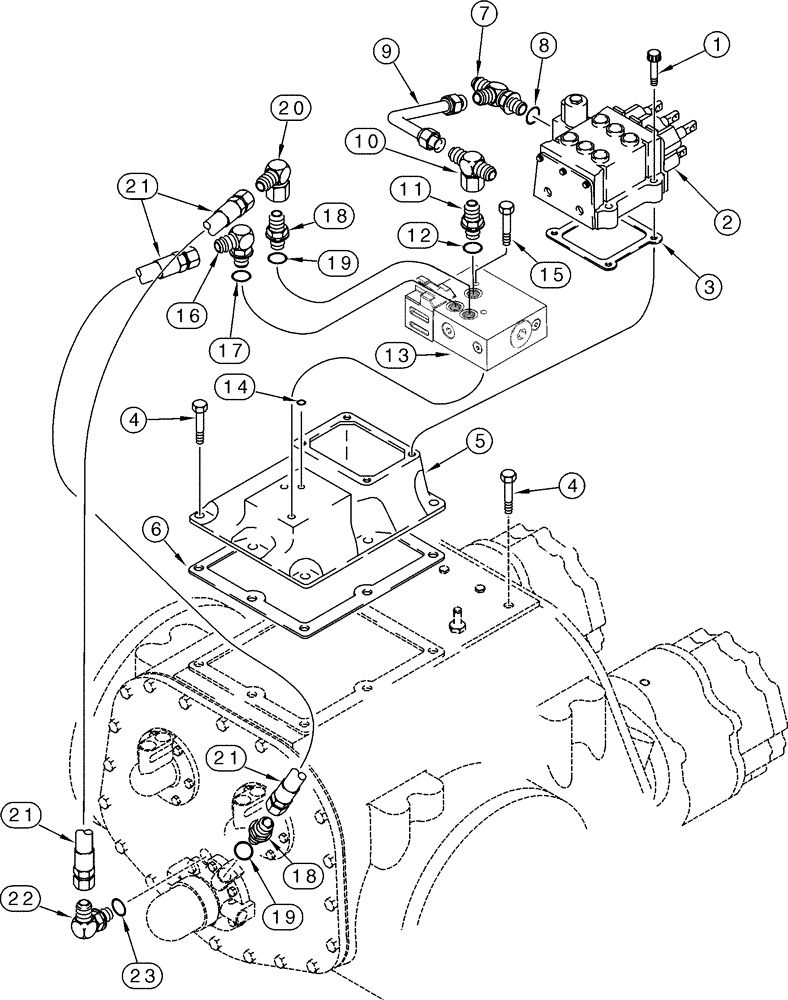

Запчасти Case 1150H (06-15) - TRANSMISSION - HYDRAULIC LINES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
High/Low Range
1шт.
376308A1
TRANSMISSION
Incl. 1 - 23, For Complete Assembly, See Figure 06-04 - 06-16, 07-03
1шт.
2
125588A4
VALVE
See Figure 06-11
1шт.
3
1986527C1
GASKET
Control Valve
1шт.
4
107-9820
LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd
1/2 x 1-1/4; 8
8шт.
5
139972A2
HOUSING
1шт.
6
1348904C1
GASKET
Riser
1шт.
7
218-5594
TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12
Incl. 8
1шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
9
140926A1
TUBE,19.05 mm OD, 139, 83.4 mm Length
Control Valve to Range Valve, See Figure 06-20, Attaches To REF 26
1шт.
10
218-837
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br
1-1/16 sw x fl x fl, See Figure 06-20, REF 25
1шт.
11
218-5353
HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring
Incl. 12
1шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
13
376304A1
VALVE
High/Low Range, See Figure 06-13
1шт.
15
107-9648
LOCK BOLT,Locking, 3/8"-16 x 3", G8
2шт.
16
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Incl. 17
1шт.
17
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
18
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
Incl. 19
2шт.
19
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
20
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
1шт.
21
177584A1
HOSE
600 mm (23-5/8 in)
2шт.
22
218-5280
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring
3/4 fl x 9/16 Or, Incl. 23
1шт.
238104A1
SEAL KIT
Kit, Incl. 6, For Additional Components, See Figure 06-04 - 06-07, 06-10, 07-03
1шт.
238108A1
SEAL KIT
Kit, Incl. 14, For Additional Components, See Figure 06-13
1шт.
23
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 27
