Запчасти Case 1150H (06-14) - TRANSMISSION - HYDRAULIC LINES (06) - POWER TRAIN

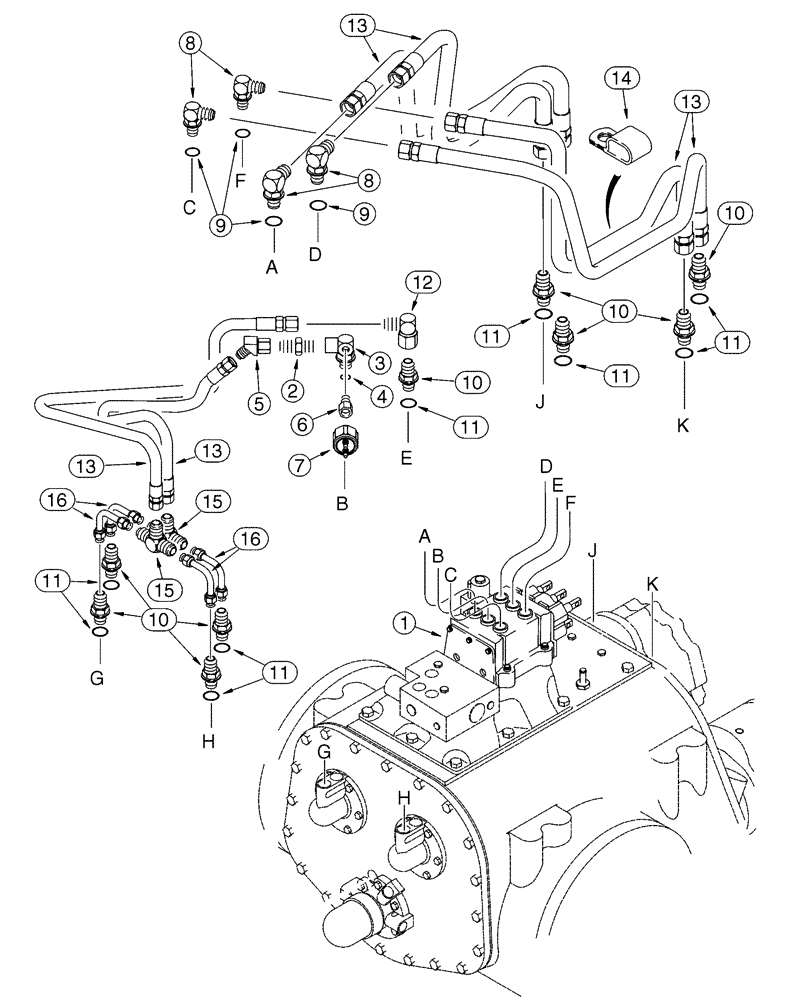

Схема запчастей Case 1150H - (06-14) - TRANSMISSION - HYDRAULIC LINES (06) - POWER TRAIN
9
13
11
13
16
2
14
11
1
15
10
5
11
10
13
8
10
10
13
11
12
8
11
15
11
16
7
6
4
3
9

Артикул

Название

Примечание

Количество

Forward/Reverse

1шт.

376308A1

TRANSMISSION

Incl. 1 - 16, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

125588A4

VALVE

See Figure 06-11

1шт.

2

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4 fl x 3/8 PT

1шт.

3

G107178

ELBOW

Incl. 4, Tapped For Backup Alarm Switch Plumbing

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

6

R52651

FITTING

Pressure Switch

1шт.

7

D139904

SWITCH

Backup Alarm

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 9

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 11

9шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

13

177584A1

HOSE

600 mm (23-5/8 in)

6шт.

14

G100534

CLAMP

2шт.

15

218-594

TEE,3/4"-16, 37 Degree

2шт.

16

144896A1

TUBE,12.7 mm OD, 78.8, 71.5 mm Length

Rear

4шт.

Выбрано товаров: 18
