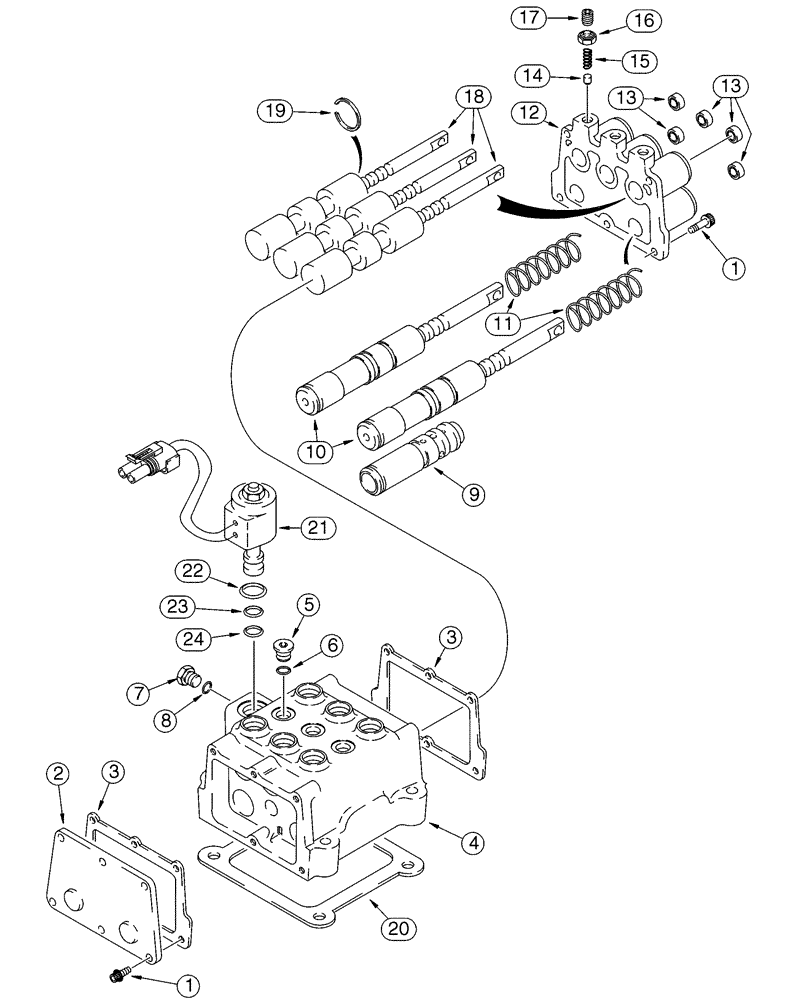

Запчасти Case 1150H (06-11) - TRANSMISSION - VALVE, CONTROL (06) - POWER TRAIN

376308A1

TRANSMISSION

Incl. 1 - 36, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

125588A4

VALVE

Incl. 1 - 24

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

1/4 NF x 5/8

11шт.

2

R21384

COVER

Rear

1шт.

3

35665

GASKET

2шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 8

3шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

126430A3

SPOOL

Forward/Reverse Modulation, See Figure 06-12

1шт.

10

189265A2

SPOOL

Clutch Cutout, See Figure 06-12

2шт.

11

121865A1

SPRING

2шт.

1542672C1

COVER

Front, Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

G105700

OIL SEAL

5шт.

14

71120

VALVE

3шт.

15

1542824C1

SPRING

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

17

G104208

SET SCREW

3/8 x 1/2

3шт.

18

G107659

ROD

Shift Control, Incl. 19

3шт.

19

G107637

RING, SNAP

RING SNAP

1шт.

20

1986527C1

GASKET

1шт.

21

349296A1

CARTRIDGE

12 V, Incl. 22 - 24

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

238107A1

SEAL KIT

Kit, Incl. 3, 6, 8, 13, 20, 22 - 24

1шт.
