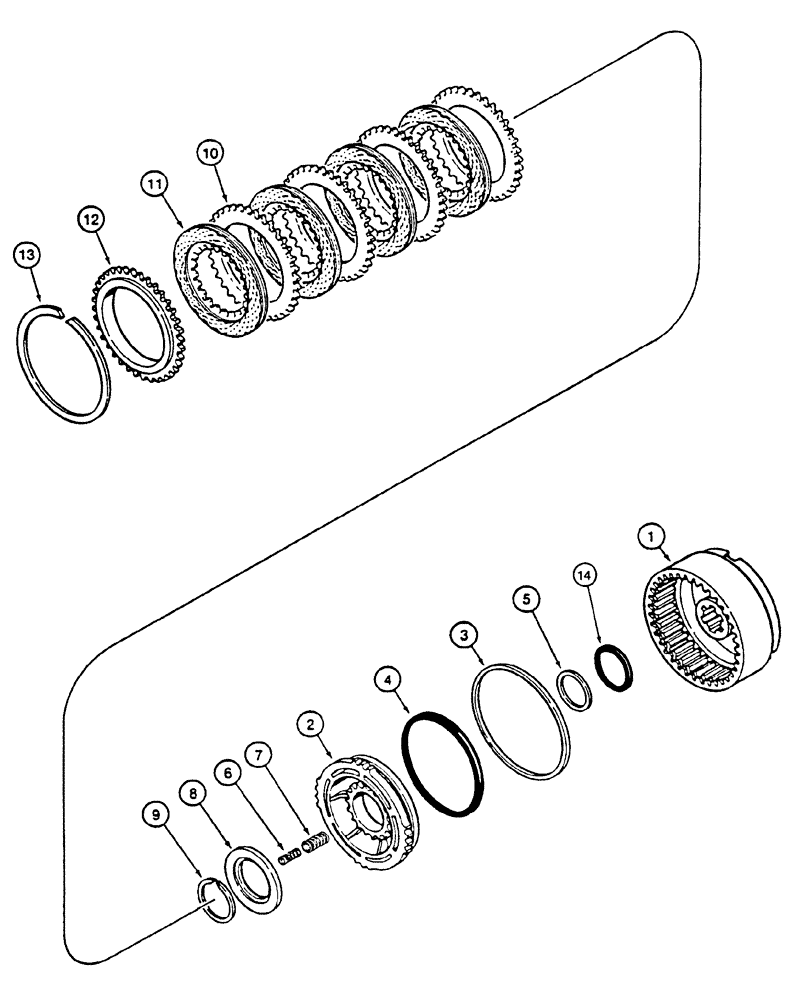

Запчасти Case 1150H (06-08) - TRANSMISSION - CLUTCH (06) - POWER TRAIN

376308A1

TRANSMISSION

Incl. 1 - 14, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

G102377

CLUTCH

Incl. 1 - 14

8шт.

1

1997112C3

DRUM

1шт.

2

1997120C1

PISTON

1шт.

3

G103486

SEALING RING

SEALRING Large

1шт.

4

238-7165

O-RING,0.103" Thk x 6.487" ID, -165, Cl 7, 75 Duro

1шт.

5

1997117C1

SEALING RING

Small

1шт.

6

A51826

SPRING

Inner

18шт.

7

A51825

SPRING

Outer

18шт.

8

R11016

RETAINER

1шт.

9

A27233

RING

1шт.

10

G101711

PLATE

Steel

4шт.

11

G102354

PLATE

4шт.

12

G103391

PLATE

Clutch Backing

1шт.

13

1997118C1

RING

1шт.

14

238-5036

O-RING,0.07" Thk x 2.364" ID, -36, Cl 5, 75 Duro

3 ID x 1/16

1шт.

238105A1

SEAL KIT

Clutch, Incl. 3 - 5, 14, For Additional Components, See Figure 06-05, 06-06

1шт.
