Запчасти Case 1150H (06-06) - TRANSMISSION - CLUTCH, LOW RANGE (06) - POWER TRAIN

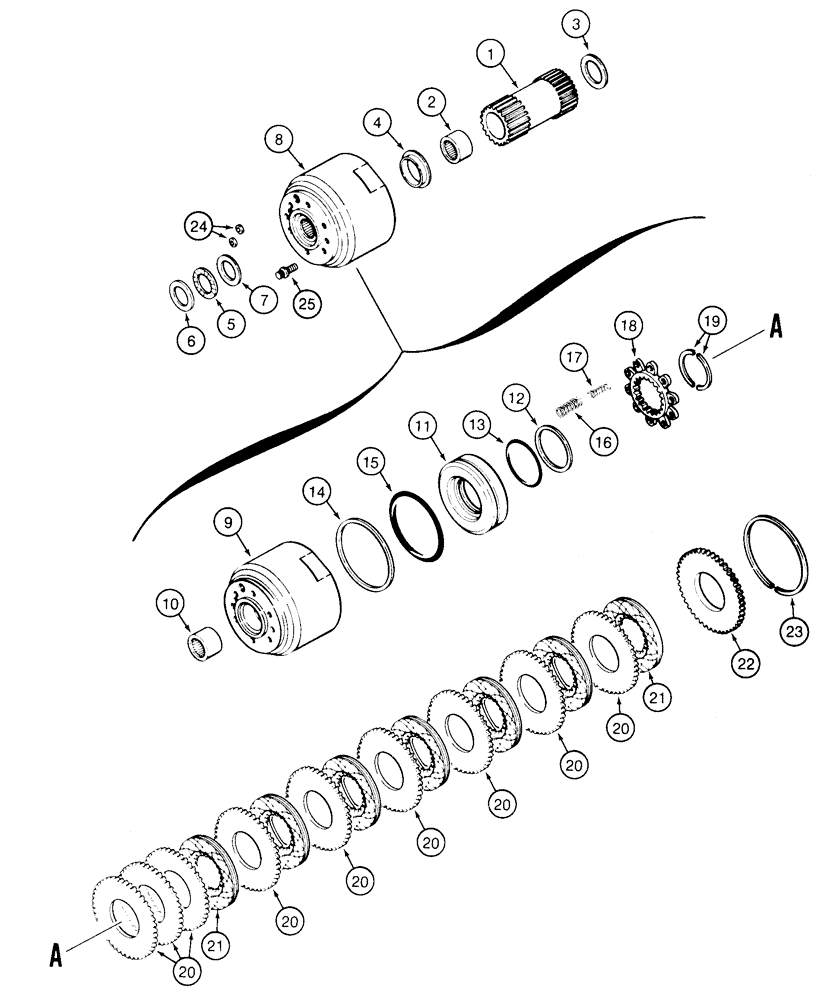

Схема запчастей Case 1150H - (06-06) - TRANSMISSION - CLUTCH, LOW RANGE (06) - POWER TRAIN
16
1
20
8
14
3
4
21
17
9
11
21
18
5
22
10
20
13
20
12
7
20
23
20
20
25
6
15
24
19
20
2

Артикул

Название

Примечание

Количество

376308A1

TRANSMISSION

Incl. 1 - 23, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

A51817

GEAR

Incl. 2

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

54 mm (2-1/8 in) OD

1шт.

3

H147785

BEARING WASHER

Front

1шт.

4

A50650

RING

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

0,793 mm (0,032 in)

1шт.

7

T41021

RING RACE

4,76 mm (0,188 in) thk

1шт.

8

G105820

CLUTCH

Low Range, Incl. 9 - 23

1шт.

9

G105821

FITTING

1шт.

10

G105785

NEEDLE BEARING

1шт.

A50621

PISTON

Incl. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Piston

1шт.

12

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

Inner

1шт.

13

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

14

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEALRING Outer

1шт.

15

238-5047

O-RING,0.07" Thk x 4.49" ID, -47, Cl 5, 75 Duro

1шт.

16

A50627

SPRING

Outer

10шт.

17

A50628

SPRING

Inner

10шт.

18

A50629

RETAINER

1шт.

19

A50630

RING

Split

1шт.

20

A67156

PLATE

70T, Steel

9шт.

21

G102264

CLUTCH DISC,66.93mm ID x 133.35mm OD x 4.04mm Thk

CLUTCH DISK 22T, Friction

7шт.

22

A50643

PLATE

1шт.

23

A50639

RING

1шт.

24

A50651

SEALING RING

SEALRING

2шт.

25

180-605

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

5/16 x 7/8; 8

2шт.

238104A1

SEAL KIT

Kit, Incl. 24, For Additional Components, See Figure 06-04, 06-05, 06-07, 06-10, 06-15, 07-03

1шт.

238105A1

SEAL KIT

Clutch, Incl. 12 - 15, For Additional Components, See Figure 06-05, 06-08

1шт.

Выбрано товаров: 29
