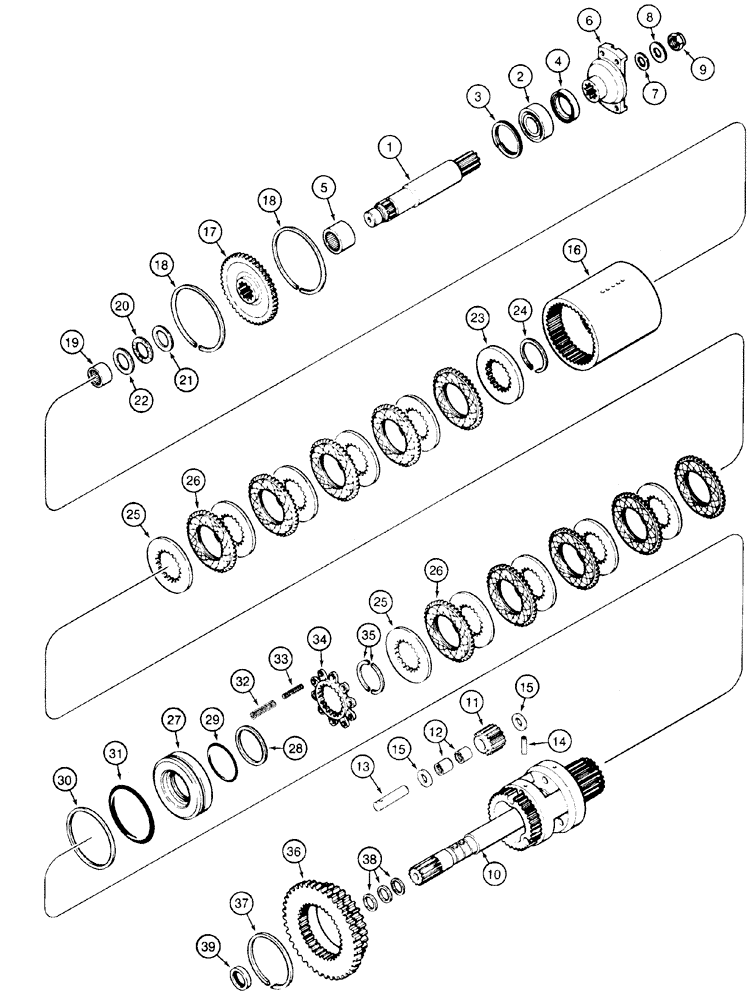

Запчасти Case 1150H (06-05) - TRANSMISSION - INPUT SHAFT AND PLANETARY (06) - POWER TRAIN

376308A1

TRANSMISSION

Incl.1 - 40, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

A50605

SHAFT

Input

1шт.

2

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

3

A51419

SNAP RING,#354, 3.684, Int, Spiral

No. 354

1шт.

4

A50420

SEAL

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

1шт.

6

G103021

YOKE

UNIVERSAL JOINT YOKE Input Shaft to Drive Shaft

1шт.

7

A50608

WASHER

Plastic

1шт.

8

144618A1

WASHER

1шт.

9

131-465

LOCK NUT,7/8"-14, G8

7/8 NF

1шт.

1348916C2

GEAR WHEEL

With High Range Clutch, Incl. 10 - 38

1шт.

10

1348878C2

GEAR WHEEL

1шт.

11

A50616

GEAR

18T

3шт.

12

A62548

NEEDLE BEARING,0.62" ID x 0.88" OD x 0.875"

6шт.

13

A50618

SHAFT

3шт.

14

38-1814

LOCK PIN,1/8" x 7/8", Slotted

1/8" x 7/8", Slotted

3шт.

15

A50617

WASHER

6шт.

16

G102600

RING

1шт.

17

A50637

GEAR

70T

1шт.

18

A50639

RING

2шт.

19

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

1шт.

20

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

1шт.

21

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

0,793 mm (0,032 in), Inner

1шт.

22

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

3,17 mm (0,125 in)

1шт.

23

A50634

PLATE

1шт.

24

101-11287

SNAP RING,#287, 2.713, Ext

No. 287

1шт.

25

A50631

PLATE

22T, Steel

10шт.

26

G102263

DISC

70T, Friction

10шт.

A50621

PISTON

Incl. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

Piston

1шт.

28

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

Inner

1шт.

29

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEALRING Outer

1шт.

31

238-5047

O-RING,0.07" Thk x 4.49" ID, -47, Cl 5, 75 Duro

1шт.

32

A50627

SPRING

Outer

10шт.

33

A50628

SPRING

Inner

10шт.

34

A50629

RETAINER

1шт.

35

A50630

RING

Split

1шт.

36

G106716

GEAR

Forward and Reverse Drive

1шт.

37

A50620

RING

1шт.

38

1348976C1

SEAL

Output Shaft

3шт.

39

A54107

OIL SEAL,38.1mm ID x 8mm Thk

Output Shaft

1шт.

238104A1

SEAL KIT

Kit, Incl. 4, 7, 8, 38, 39, For Additional Components, See Figure 06-04, 06-06, 06-07, 06-10, 07-03

1шт.

238105A1

SEAL KIT

Clutch, Incl. 28 - 31, For Additional Components, See Figure 06-06, 06-08

1шт.
