Запчасти Case 1150H (06-02) - TORQUE CONVERTER, (06) - POWER TRAIN

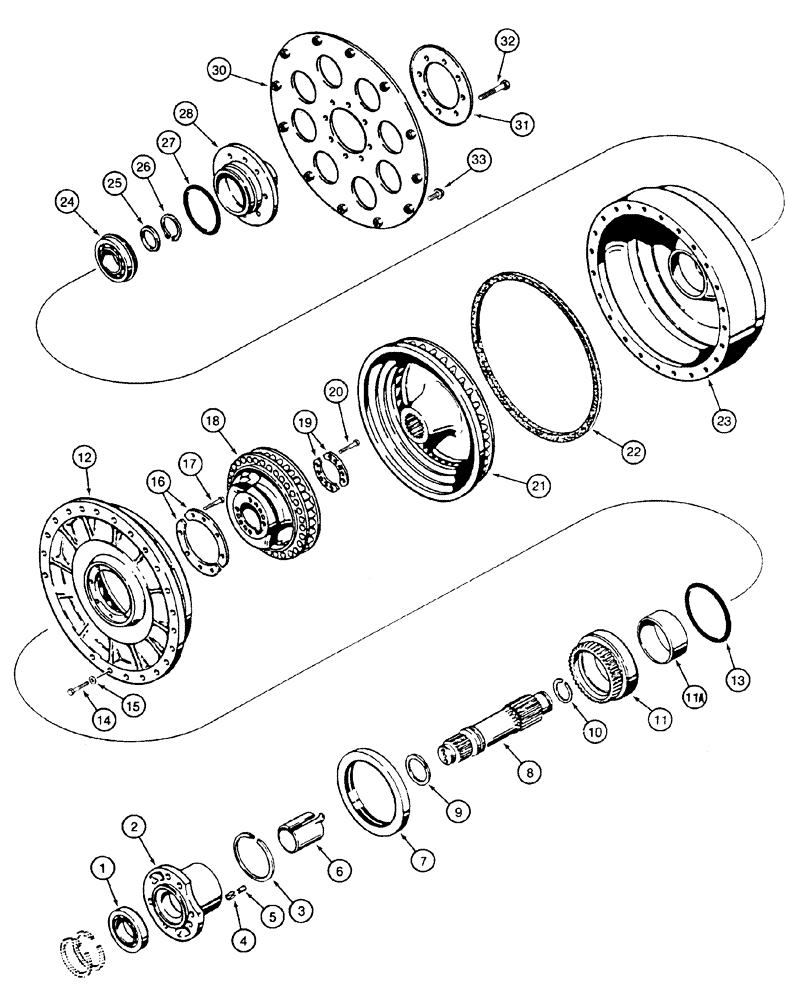

Схема запчастей Case 1150H - (06-02) - TORQUE CONVERTER, (06) - POWER TRAIN
11a
18
22
13
28
24
21
6
17
25
7
15
14
19
4
11
26
8
23
9
10
1
16
33
27
20
32
31
2
3
5
30
12

Артикул

Название

Примечание

Количество

Shaft, Impeller, and Turbine

1шт.

R52029

CONVERTER

Incl. 1 - 33, For Additional Components, See Figure 06-01

1шт.

1

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

2

D75861

GUIDE

1шт.

3

1341403C1

SEALING RING

1шт.

4

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

5

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

6

D32027

SLEEVE

Split

1шт.

7

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

1шт.

8

D32026

SHAFT

Output

1шт.

9

A20229

RING

1шт.

10

A22889

RING

1шт.

11

D75862

GEAR

Drive, Incl. 11A

1шт.

11a

D75859

BUSHING,89.09mm ID x 93.75mm OD x 27.18mm L

1шт.

12

D37376

TURBINE

1шт.

13

238-7248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 7, 75 Duro

1шт.

14

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

15

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

24шт.

16

D32016

PLATE

2шт.

17

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

8шт.

18

D37377

GUIDE

Guide

1шт.

19

D32010

PLATE

2шт.

20

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

5/16 x 1; 8

6шт.

21

D31935

TURBINE

1шт.

22

D31998

GASKET

1шт.

23

N9777

HOUSING

1шт.

24

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

1шт.

25

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

1шт.

26

A26946

RING

1шт.

27

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8

1шт.

28

N9775

HANDWHEEL

1шт.

30

N9774

LARGE PLATE

PLATE, LARGE

1шт.

31

N9778

WASHER

1шт.

32

426-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

3/8 x 7/8

8шт.

33

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Flex Plate to Engine Flywheel

12шт.

R38108

GASKET KIT

Seal, Incl. 3, 7, 9, 13, 22, 27, For Additional Components, See Figure 06-01, Also Includes Parts Not Used in This Application

1шт.
