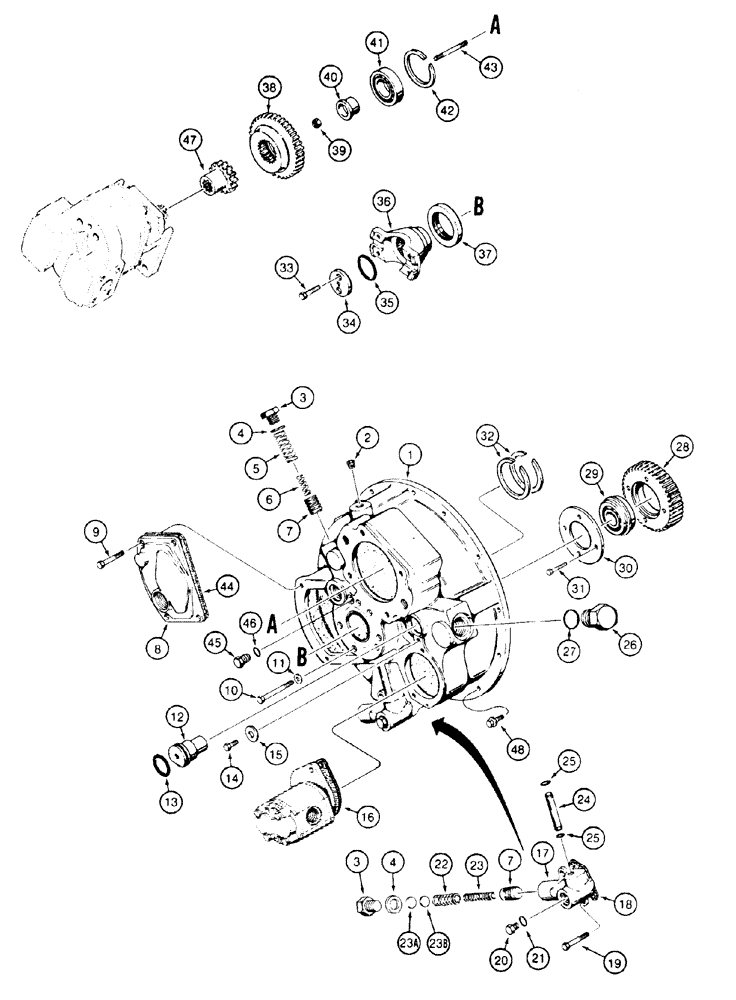

Запчасти Case 1150H (06-01) - TORQUE CONVERTER (06) - POWER TRAIN

Housing, Covers, Gears, and Mounting

1шт.

R52029

CONVERTER

Incl. 1 - 46, For Additional Components, See Figure 06-02

1шт.

1

D77622

HOUSING

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

D32013

PLUG

Relief Valve

2шт.

4

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

2шт.

5

D32031

SPRING

Outer

1шт.

6

D32021

SPRING

Inner

1шт.

7

D32014

PISTON

Relief Valve

2шт.

8

R29098

PLATE

Cover

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

11

D32117

COPPER WASHER

6шт.

12

R29100

SHAFT

Idler Gear

1шт.

13

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

14

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

15

D32118

WASHER

1шт.

16

D32000

GASKET

Gear Pump

1шт.

17

N6952

HOUSING

Valve, Pressure Regulator

1шт.

18

D32002

GASKET

Valve, Pressure Regulator

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

214389

PLUG,3/4" - 16 ORB

Includes Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

N6915

SPRING

Outer

1шт.

23

D72856

SPRING

Inner

1шт.

23a

N6953

SHIM,.0359" Thk

(0.911 mm)

1шт.

23b

N6954

SHIM,.0239" Thk

(0.607 mm)

1шт.

24

R30090

TUBE,0.62" ID x 0.87" OD x 3.62" L

1шт.

25

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

2шт.

26

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

R29096

GEAR

1шт.

29

R29093

BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W

1шт.

30

R29099

PLATE

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

32

D32070

RING

2шт.

33

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

34

D32018

PLATE

Yoke

1шт.

35

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

36

R42731

YOKE

UNIVERSAL JOINT YOKE Drive Shaft

1шт.

37

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

1шт.

38

D32003

GEAR

Driven

1шт.

39

425-116

NUT,3/8" - 24, Gr 5

1шт.

40

D32032

BEARING,1.3782" OD x 1.03

Bearing, Ball

1шт.

41

R29094

BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W

1шт.

42

D32069

RING

1шт.

43

D32067

STUD

3/8 NF x 1-1/2

1шт.

44

D32005

GASKET

1шт.

45

9672438

PLUG,7/16" - 20 ORB

Incl. 46

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

47

R46562

PINION

Pinion, Purchase Separately

1шт.

48

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Purchase Separately

12шт.

R38108

GASKET KIT

Seal, Incl. 4, 11, 13, 16, 18, 21, 25, 27, 35, 37, 44, 46, For Additional Components, See Figure 06-02, Also Includes Parts Not Used in This Application

1шт.
