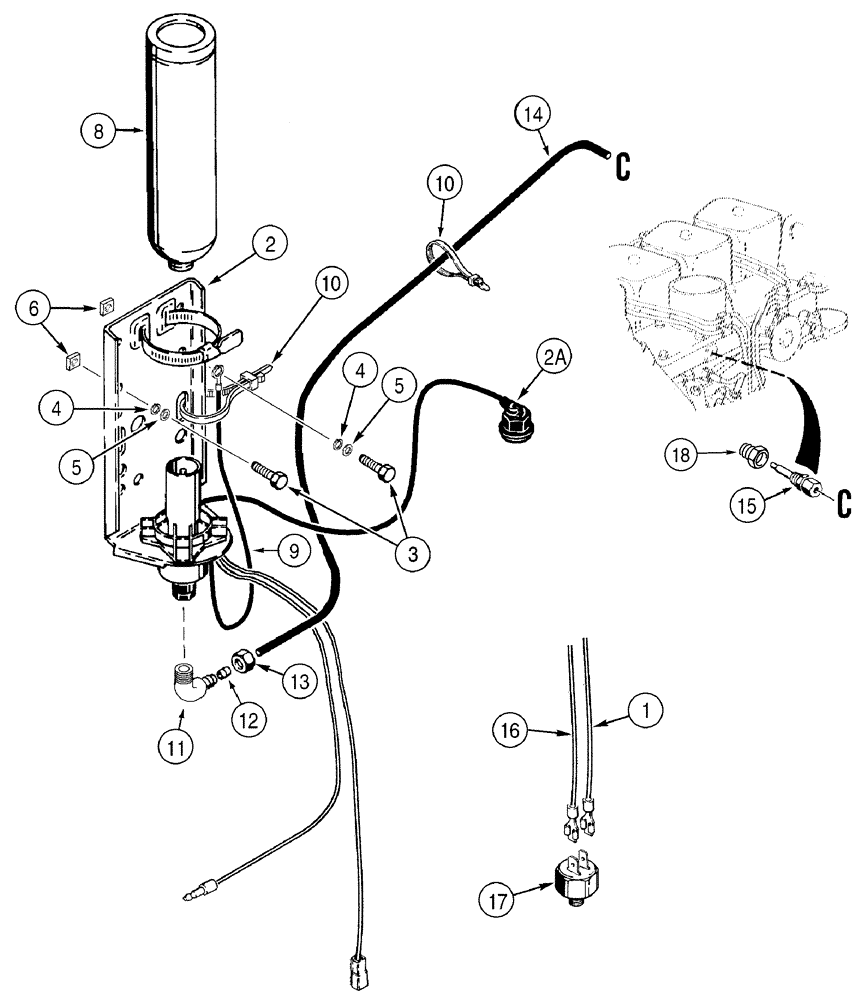

Запчасти Case 1150H (04-19) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

338943A2

HARNESS

Front, For Continuation of Harness, See Figure 04-06 - 04-13

1шт.

2

A172116

VALVE

12V, 3 cc, Cold Start, Incl. 2A

1шт.

2a

254729A1

SET OF PARTS

Cap and Cord

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

6

129-855

SQUARE NUT,Sq, 5/16"-18

3шт.

8

A171940

CYLINDER

Ether; If Used

1шт.

9

R51632

ELECTRICAL WIRE

WIRE Ground

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 12, 13

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

D145367

TUBE

762 mm (30 in), Cut From L60539X

1шт.

15

A172900

NOZZLE CAP

Atomizer, Component Parts Not Serviced Separately

1шт.

16

182450A1

ELECTRICAL WIRE

WIRE Jumper

1шт.

17

A172117

SWITCH

Ether Temperature

1шт.

18

221-1087

REDUCER

1/2 x 1/8, Used With 15

1шт.
