(04-15) - HARNESS - LAMP

Запчасти Case 1150H (04-15) - HARNESS - LAMP (04) - ELECTRICAL SYSTEMS

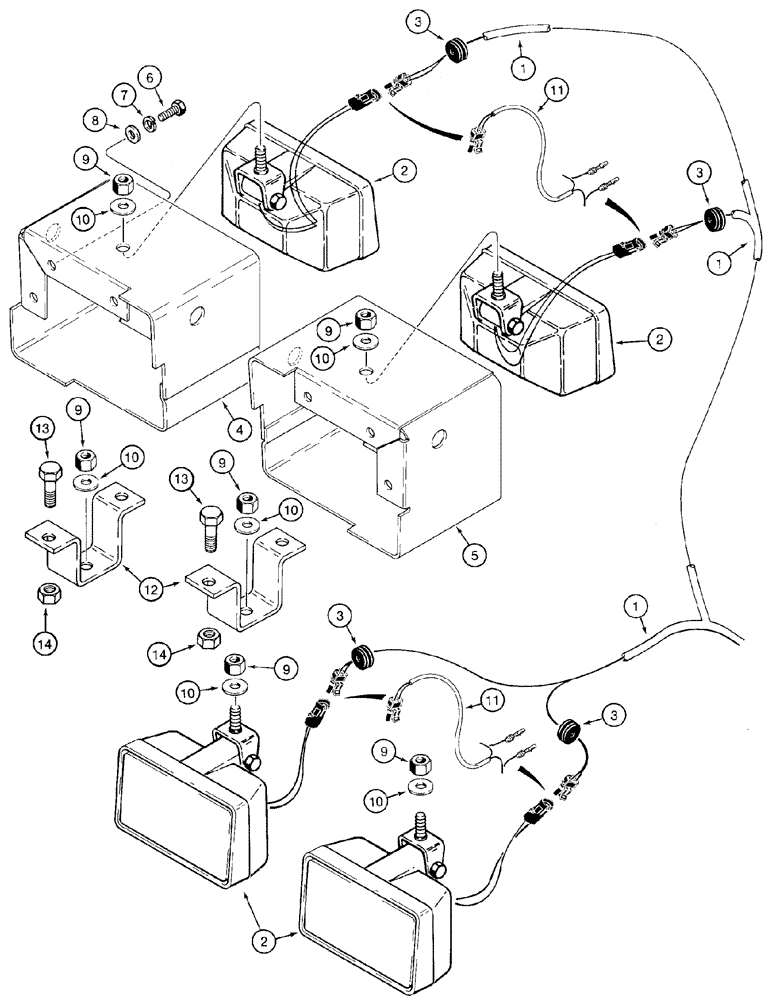

Схема запчастей Case 1150H - (04-15) - HARNESS - LAMP (04) - ELECTRICAL SYSTEMS
3
5
9
3
10
11
10
12
3
8
13
10
10
1
6
1
9
1
10
11
9
2
9
3
7
14
9
9
13
2
4
10
14
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Models With Cab

1шт.

1

1546444C1

HARNESS

Lamp

1шт.

2

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Front And Rear, See Figure 04-17

4шт.

3

1546464C1

GROMMET

Harness

4шт.

4

1999472C1

GUARD

Left Hand Front

1шт.

5

1999471C1

GUARD

Right Hand Front

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

1546449C1

HARNESS

Adapter, Lamp To Harness

4шт.

12

182893A1

BRACKET

Lamp Mounting

2шт.

13

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

14

231-1448

NUT,1/2"-13, GB

4шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.
