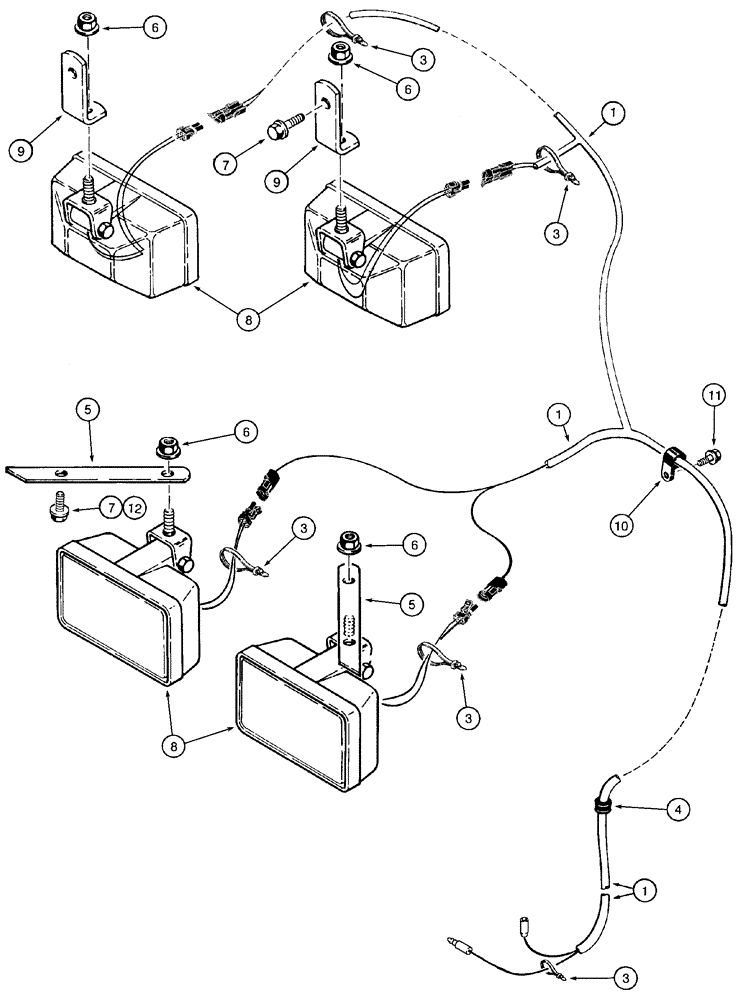

Запчасти Case 1150H (04-14) - HARNESS - LAMP (04) - ELECTRICAL SYSTEMS

Models With Canopy

1шт.

1

372818A1

HARNESS

Lamp, W/ 6 Terminal Connectors; No Longer Available, Order 372818A2, W/ 5 Terminal Connectors and 394228A1 Wiring Adapter Kit, Ref 13

1шт.

1

372818A2

HARNESS

Lamp, W/ 5 Terminal Connectors

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

4

D42106

GROMMET

Rubber, Lamp Harness through Hydraulic Reservoir Frame

1шт.

5

185919A1

BRACKET

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

See Ref 12

4шт.

8

D137294

LIGHT ASSY.

Front And Rear, See Figure 04-17

4шт.

9

186861A1

BRACKET

2шт.

10

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

6шт.

11

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Models with Rear Screen

2шт.

13

394228A1

KIT

To Adapt Exisiting Lamp Harness to 372818A1 Lamp Harness; Incl. Instruction Sheet and Ref 13A-13E; Not Illustrated

1шт.

NSS

NOT SOLD SEPARAT

Instruction Sheet

1шт.

13a

245483C1

ELEC CONNECTOR,Male, 2 Pin

Not Illustrated

1шт.

13b

1964741C1

PIN

Not Illustrated

2шт.

13c

225126C1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

4шт.

13d

245482C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

13e

1964742C1

PIN

Not Illustrated

2шт.
