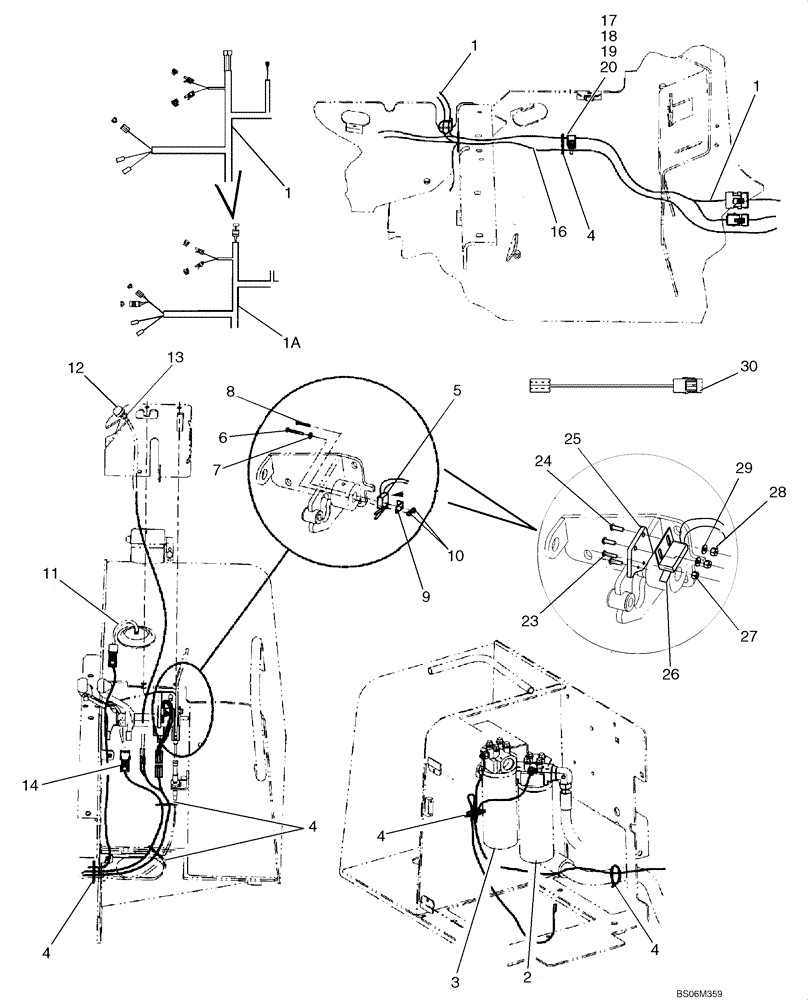

Запчасти Case 1150H (04-13) - HARNESSES - FRONT AND REAR (04) - ELECTRICAL SYSTEMS

To Hydraulic Reservoir and Fuel Tank

1шт.

1

337573A1

HARNESS

Rear; W/ 1 Neutral Switch Connector And Light Terminal with Locking Pin Receptacle; No Longer Available, Order 3375753A2, Ref 1A and 394228A1, Ref 21 for Service

1шт.

1a

337573A2

HARNESS

Rear; W/ 2 Neutral Switch Shroud Connectors And 2 Way Light Shroud Connector

1шт.

2

REF

INSTRUCTION

Filter, Oil, Transmission, See Figure 06-21

1шт.

3

REF

INSTRUCTION

Filter, Oil, Equipment, See Figure 06-21

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

5

1343288C2

LIMIT SWITCH

Neutral Start; If Used

1шт.

6

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

No. 6 x 1-1/; If Used

1шт.

7

495-21019

WASHER,#8

; If Used

1шт.

8

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

; If Used

1шт.

9

310719A1

COVER

Neutral Start Switc; If Used

1шт.

10

231-14106

NUT,#6-32, GB

; If Used

2шт.

11

326276A1

SENSOR

Fuel Level, See Figure 03-05

1шт.

12

R58727

SWITCH

Horn Button

1шт.

13

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

15

197397A2

SWITCH

Two Speed, Not Illustrated, See Figure 06-23

1шт.

16

338943A2

HARNESS

Front

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

18

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

394228A1

KIT

Service, To Adapt Existing Lamp and Rear Wiring Harness to 337573A2 Harness; Incl. Ref 21A-21E, Ref 22 Instruction Sheet

1шт.

21a

245483C1

ELEC CONNECTOR,Male, 2 Pin

Not Illustrated

1шт.

21b

1964741C1

PIN

Not Illustrated

2шт.

21c

225126C1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

4шт.

21d

245482C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

21e

1964742C1

PIN

Not Illustrated

2шт.

22

7-18760

INSTRUCTION

For Installing 394228A1 Service Kit for ROPS Lamp Wiring and Rear Wiring Harness, Not Illustrated

1шт.

396655A1

KIT

Park and Neutral Start Switch; Incl. Ref 23-30; If Used

1шт.

23

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

1шт.

24

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

3шт.

25

392957A1

PLATE

Switch Mounting Start; If Used

1шт.

26

394819A2

SWITCH

Neutral Start; 190 mm; If Used

1шт.

27

231-14408

NUT,#8-32, GB

#8

1шт.

28

231-14409

NUT,#10-24, GB

2шт.

29

495-31022

WASHER,#10

0.219 x 0.500 x 0.049

2шт.

30

396635A1

ELECTRICAL WIRE

WIRE Neutral Start Jumper

1шт.
