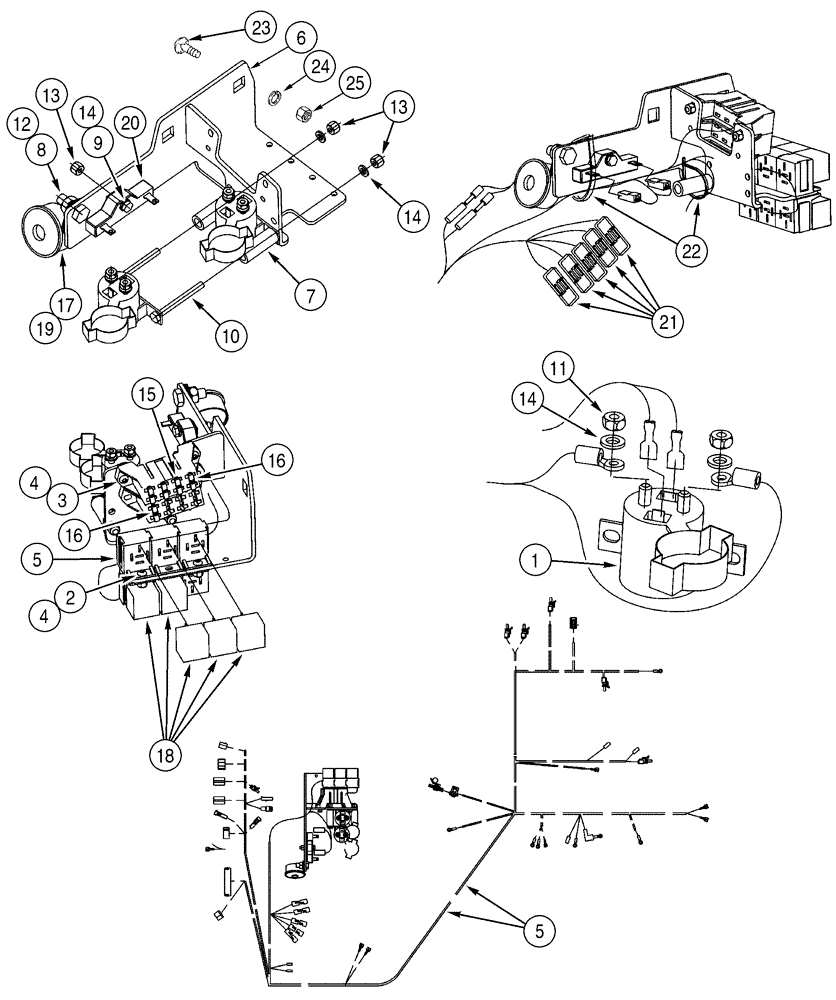

Запчасти Case 1150H (04-08) - FUSE AND RELAY - MOUNTING (04) - ELECTRICAL SYSTEMS

1

120399A1

RELAY

100 amp, Starter, Ignition Pump Shutoff Solenoid

2шт.

2

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

3

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

4

86625057

NUT,#10-24, GB

4шт.

5

338943A2

HARNESS

Front, W/ Trans Pressure Connector, 230 mm (9.0") Length

1шт.

6

372061A1

BRACKET

Mounting, Relay And Fuse

1шт.

7

372610A1

SPACER

2шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

9

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

10

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

15

A149800

FUSE,10 Amp

10 amp

3шт.

16

A149804

FUSE

30 amp, Lt. Green

2шт.

16a

A149804

FUSE

30 amp,Lt Green, Not Illustrated, Used With, Air Suspension Seat and Heater

1шт.

17

D120561

CLAMP

1шт.

18

314451A1

RELAY

30 amp; Replaces D128310

5шт.

18a

314451A1

RELAY

30 amp, Not Illustrated, Used With, Air Suspension Seat and Heater; Replaces D128310

1шт.

19

D137468

BUZZER

Warning

1шт.

20

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

5шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

23

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

2шт.
